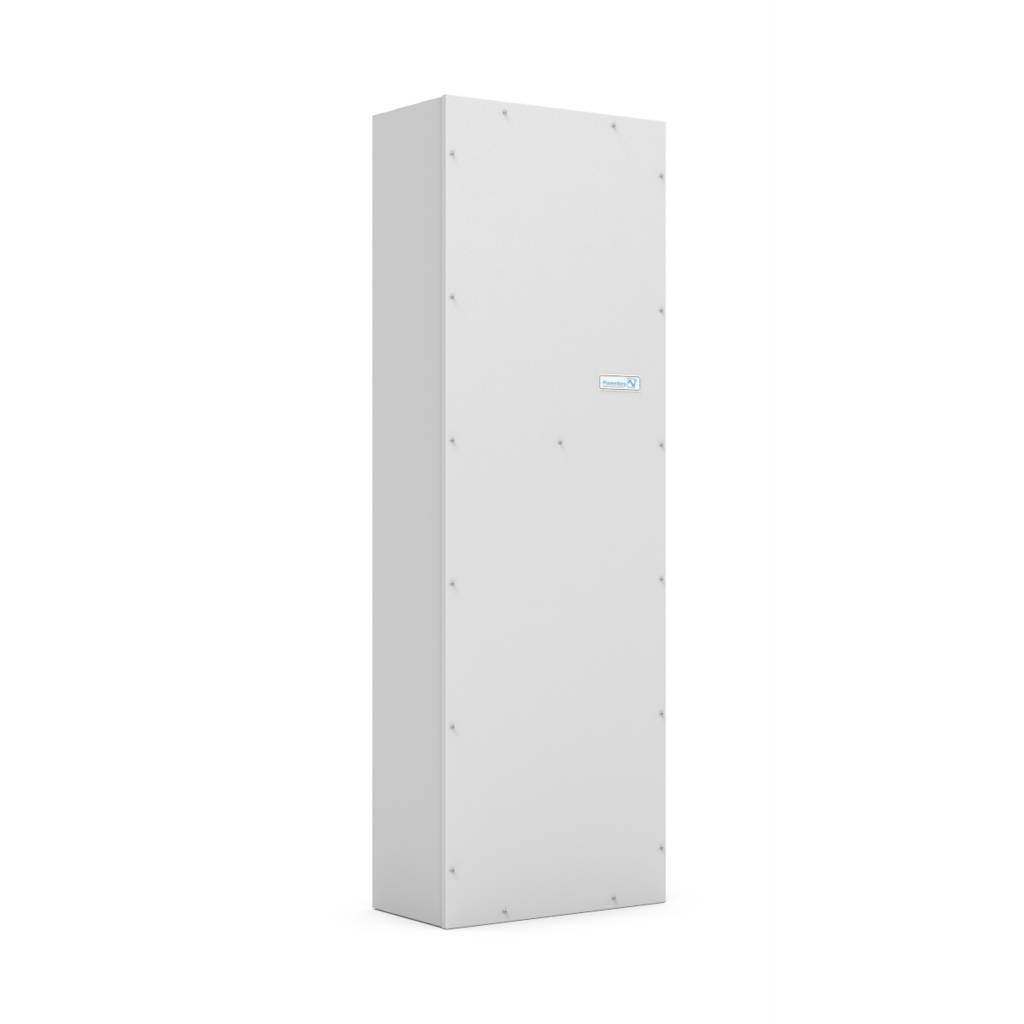

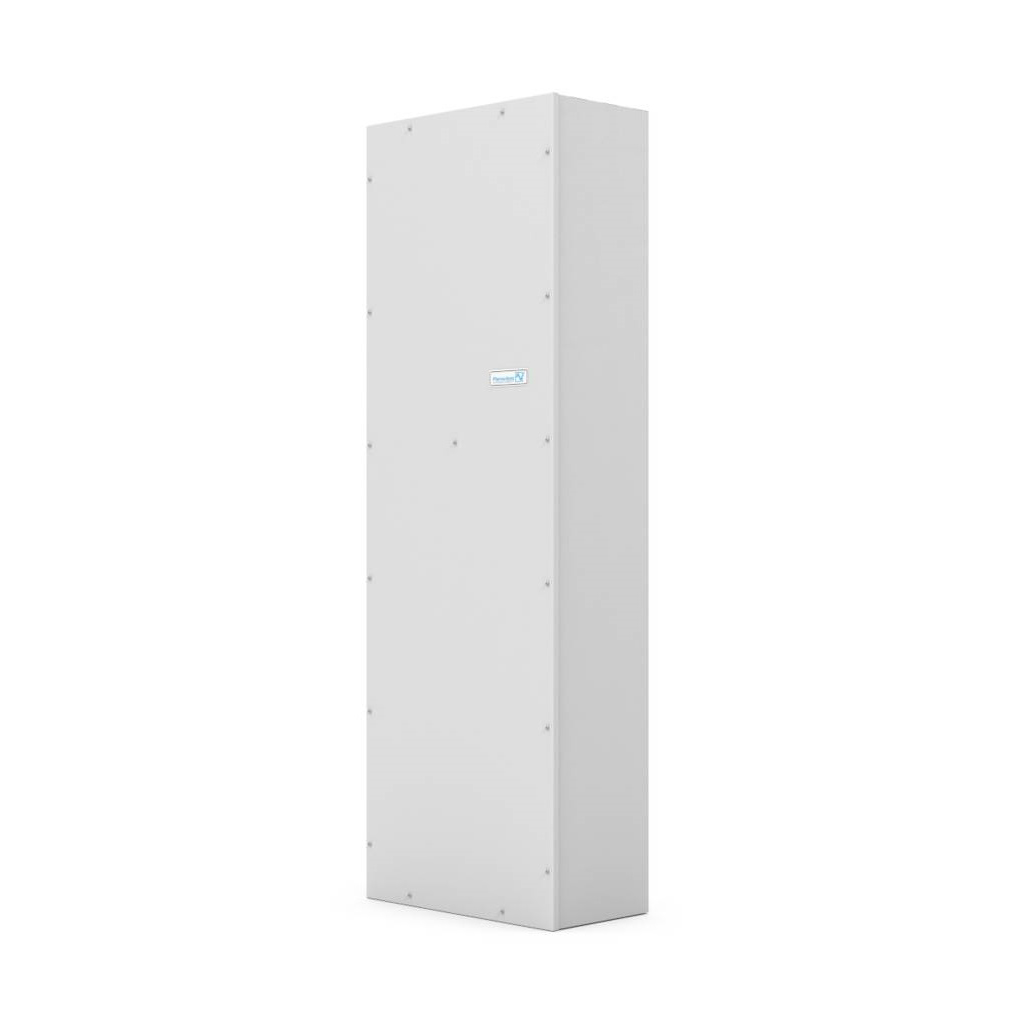

PWS 71002 10kW
|
|
SLIM air/water heat exchangers 10000 W
|
|
|
|
|
|
Technical data
| Data | PWS 71002 | ||
| Rated voltage ± 10% | AC 50/60 Hz | ||
| 400 V 3~ | 230 V | ||
| Cooling capacity at 600 l/h | W10/A35 | 10000 W | |
| Ambient temperature | +1 … +70 °C / +34 … +158 °F | ||
| Water inlet temperature | +1 … +35 °C / +34 … +95 °F | ||
| Degrees of protection according to EN 60529 | IP 55 | towards the electrical enclosure if used as intended by the manufacturer | |
Further technical details and dimensions can be found in the download section on this page under product sheet
Downloads
| Description | Language | Type | Size | Download |
| Declaration of conformity | English, Italian |  |
150 KB | │DOWNLOAD |
| Operating manual PWx | English, German, French, Italian, Spanish | |
380 KB | │DOWNLOAD |
| Supplement PWS 71002 230V | English, German, French | |
370 KB | │DOWNLOAD |
| Supplement PWS 71002 400V | English, German, French | |
400 KB | │DOWNLOAD |
| Product sheet | English | |
190 KB | │DOWNLOAD |
| 3D-model (STEP) | English |  |
1.7 MB | │DOWNLOAD |
| Cut-out | English, German | |
86 KB | │DOWNLOAD |
| UL recognized certificate | English | |
240 KB | │DOWNLOAD |
| UKCA Declaration of conformity | English | |
160 KB | │DOWNLOAD |
| EAC certificate | Russian | |
1.7 MB | │DOWNLOAD |
Ordering details
| Ordering details | PWS 71002 | |
| Rated voltage | 400 V AC | 230 V AC |
| Article number | 12057802055 | 12057810055 |

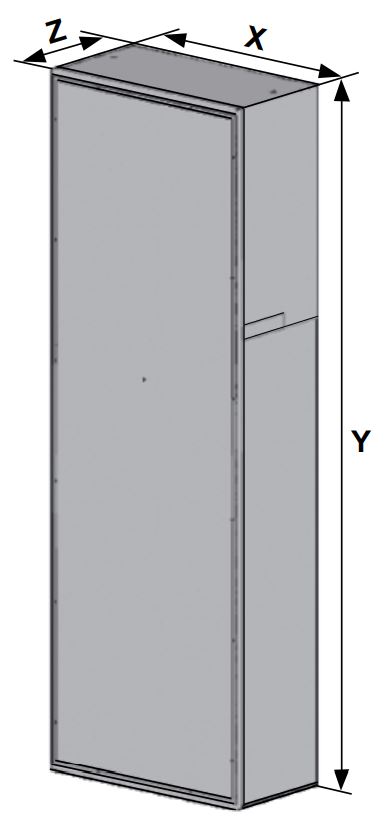

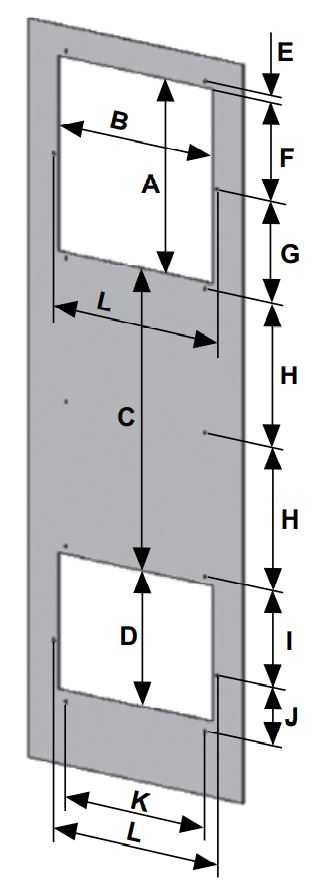

| DIMENSIONS PWS 71002 | ||
  |
||
| A | 500 mm | |
| B | 500 mm | |
| C | 775 mm | |
| D | 350 mm | |
| E | 15 mm | |
| F | 270 mm | |
| G | 260 mm | |
| H | 370 mm | |
| I | 250 mm | |
| J | 150 mm | |
| K | 450 mm | |
| L | 530 mm | |
| X | 600 mm | |
| Y | 1800 mm | |
| Z | 315 mm | |
 |
