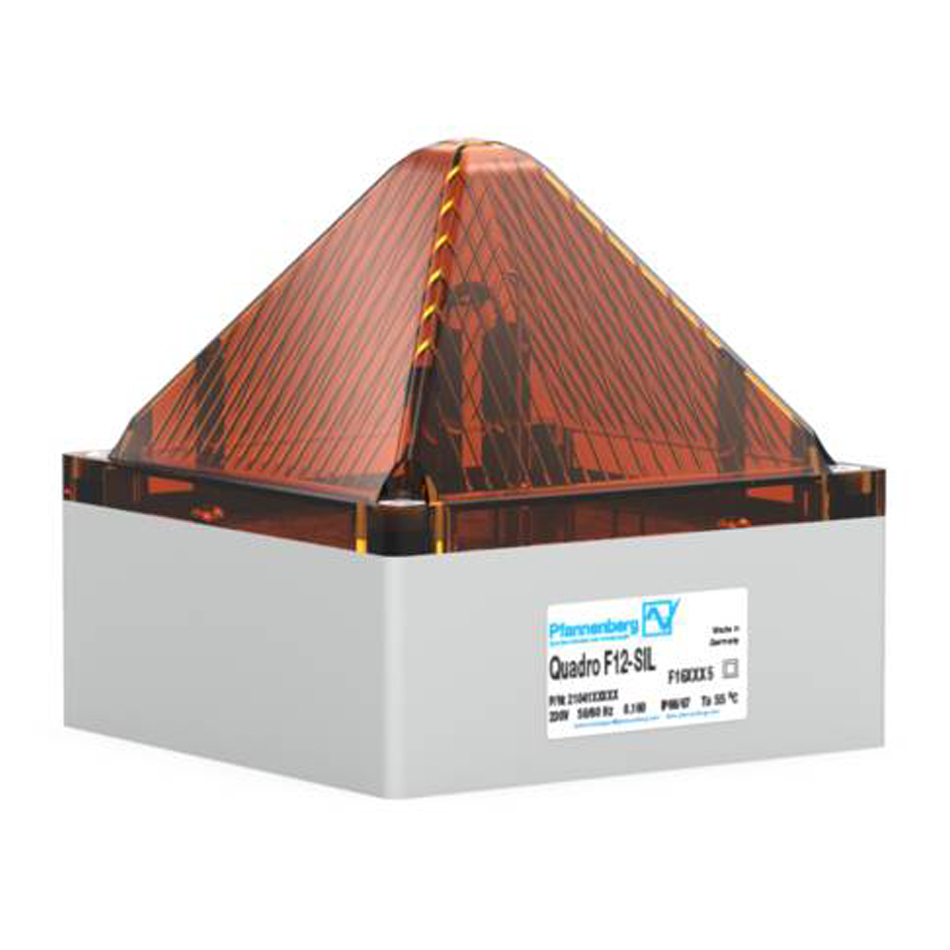

Quadro F12-SIL

Flashing light 10 Joules

Integrated safety in sturdy Quadro-Design

The warning devices can be implemented in Safety Instrumented Systems (SIS) up to SIL 2/PL d
To signal dangerous situations in safety-related application such as process and plant safety, e.g. leaks / gas warning / high-pressure / overfilling and machine safety, e.g. start-up warning / muting indication / machine stop delay warning
By means of integrated self-monitoring of the devices the normative required, regular inspection of warning devices is ensured

Safety-related applications	Protection system	Protection system	Impact-proof housing
Operating temperature	EAC conformity	Warranty

Electrical data		Quadro F12-SIL
Rated voltage		230 V AC	115 V AC	24 V DC
Rated frequency		50/60 Hz	50/60 Hz	-
Operating range		195–253 V	95–127 V	18–30 V
Nominal current consumption	flashing light	250 mA	350 mA	700 mA
	diagnostic channel	100 mA	100 mA	65 mA
Alarm contact	contact version	positively driven contact (1x NC; 1x NO)
	switching current	max. 6 A
	switching voltage	max. 250 V AC
	max. switching power (AC)	1500 VA
	recommended minimum load	>50 mW

Further technical details and dimensions can be found in the download section on this page under product sheet
