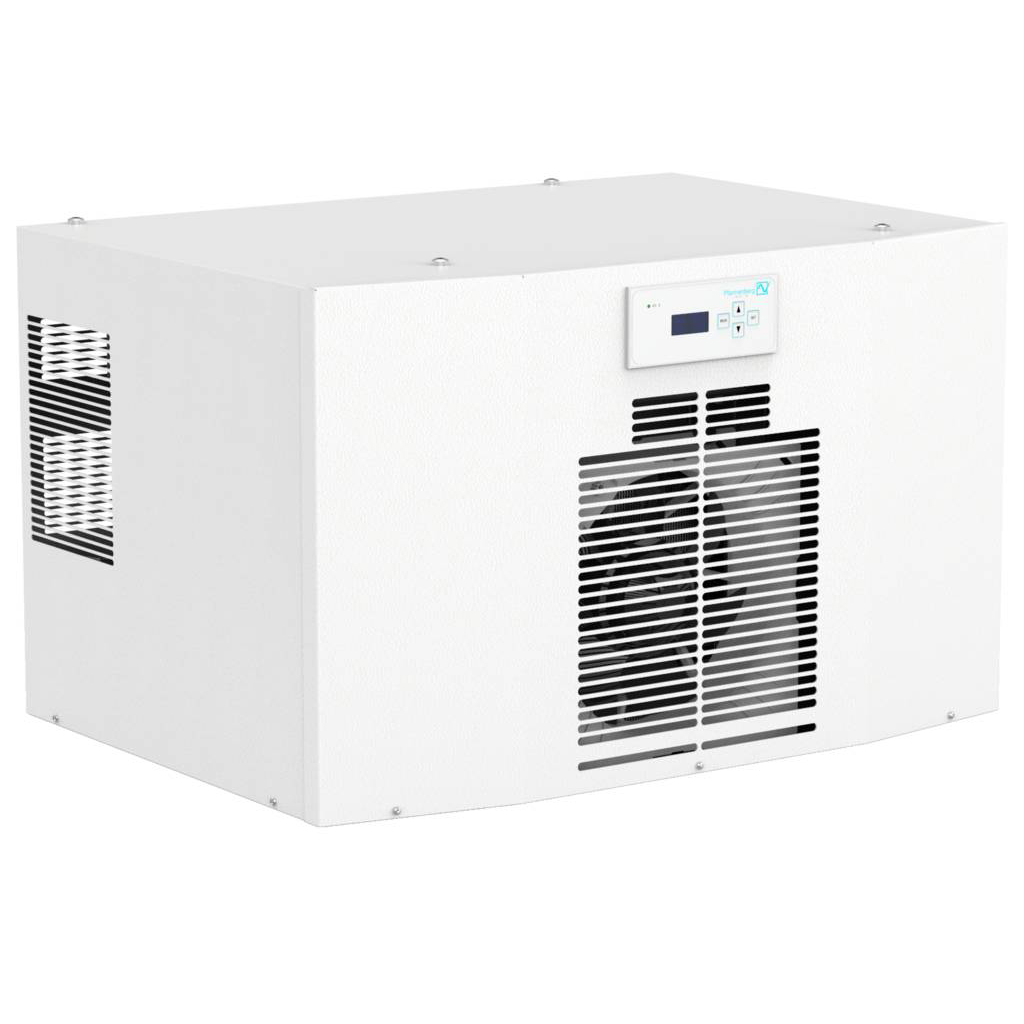

DTT 6401

εCOOL top mounting cooling unit 2000 W

Robust: steel cover, easily paintable
Safety: 4-fold protection against condensate thanks to ideal, patented condensate management system
Service-friendly: toolless mounting and maintenance thanks to quick installation frame
Service-friendly: complete cover removable towards the front. Easily accessible filter mats (optional) and control elements in front area
Energy efficiency: around 20 % saving on energy thanks to the use of more effective, lighter components
Energy efficiency: optional Multi Controller with energy-saving operation mode
Design and colour matching: perfect mixture of functionality and design
Available in stainless steel

Top mounting	Protection system	NEMA Type 12	top EER / energy saving
Tool-less mounting	Tool-less filter mat changing	Service friendly

Data		DTT 6401
Rated voltage ± 10%		AC 50/60 Hz
		400/460 V 3~¹	230 V
Cooling capacity according to EN 14511	A35/A35	2000 / 2100 W
	A35/A50	1540 / 1600 W
Ambient temperature		+15 … +55 °C / +59 … +131 °F
Degrees of protection according to EN 60529	IP 54	towards the electrical enclosure if used as intended by the manufacturer
	IP 34	towards the electrical enclosure if used as intended by the manufacturer
Condensate management		integrated condensate evaporation system with safety overflow

¹ Suitable for various supply voltages (see technical specific data sheet)

Further technical details, and dimensions can be found in the download section on this page under product sheet

Description	Language	Type	Size	Download
Declaration of conformity DTT 6xx1	English, German		73 KB	│DOWNLOAD
Declaration of conformity UKCA	English		38 KB	│DOWNLOAD
Operating manual DTT 6401 230V MC	English, German, Italian, French, Spanish, Russian		47 MB	│DOWNLOAD
Operating manual DTT 6401 230V SC	English, German, Italian, French, Spanish, Russian		45 MB	│DOWNLOAD
Operating manual DTT 6401 400V MC	English, German, Italian, French, Spanish, Russian		48 MB	│DOWNLOAD
Operating manual DTT 6401 400V SC	English, German, Italian, French, Spanish, Russian		46 MB	│DOWNLOAD
Supplement Test mode + MM (MC)	English, German, Italian, French, Spanish, Russian		250 KB	│DOWNLOAD
Short operating manual	English, German, French, Italian, Spanish		1.0 MB	│DOWNLOAD
Product sheet	English		480 KB	│DOWNLOAD
3D-model (STEP)	English		4.4 MB	│DOWNLOAD
Cut-out	English, German		130 KB	│DOWNLOAD
UL recognized certificate	English		170 KB	│DOWNLOAD
EAC certificate	Russian		1.6 MB	│DOWNLOAD
