 DC string box (2 inputs 1 output)
Dimensions: 270x250x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 266 €
|
 DC string box (3 inputs 1 output)
Dimensions: 270x500x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 297 €
|
| |
|
| FV411016-63 |
FV511016-63 |
|
 DC string box (4 inputs 1 output)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 352 €
|
 DC string box (5 inputs 1 output)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 357 €
|
| |
|
| FV511016-125 |
FV611016-125 |
|
 DC string box (5 inputs 1 output)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 125A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 363 €
|
 DC string box (6 inputs 1 output)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 125A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 390 €
|
| |
|
| FV111016 |
FV221016 |
|
 DC string box (1 input 1 output)
Dimensions: 215x200x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 184 €
|
 DC string box (2 inputs 2 outputs)
Dimensions: 270x500x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 297,50 €
|
| |
|
| FV331016 |
FV441016 |
|
 DC string box (3 inputs 3 outputs)
Dimensions: 270x500x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
 DC string box (4 inputs 4 outputs)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 539 €
|
| |
|
| FV661016 |
FV551016 |
|
 DC string box (6 inputs 6 outputs)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 794 €
|
 DC string box (5 inputs 5 outputs)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: 674,50 €
|
| |
|
| FVAC325 |
FVAC125 |
|
 Protection box AC triphase 3x25A
Dimensions: 270x500x160 mm
Transient and permanent surge protection, 4x25A 380V
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
 Protection box AC monophase 1x25A
Dimensions: 270x250x160 mm
Transient and permanent surge protection, 2x25A 230V
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
| |
|
| FV111016-63 |
FV221016-63 |
|
 DC string box (1 input 1 output)
Dimensions: 270x250x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|

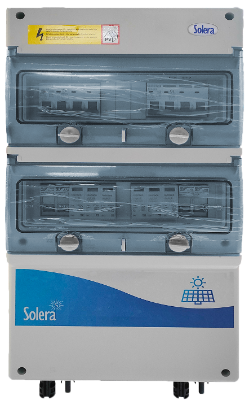

 DC string box (2 inputs 2 outputs)
Dimensions: 270x500x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
| |
|
| FV331016-63 |
FV11101625AC1 |
|
 DC string box (3 inputs 3 outputs)
Dimensions: 362x362x160 mm
Fuses: 16A 1000VDC
Cut-off switch-disconnector: in 4P 63A 1000VDC output
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
 DC string box (1 input 1 output and AC monophase)
Dimensions: 270x250x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
| |
|
| FV22101632AC1 |
|
|
 DC string box (2 inputs 2 outputs and AC monophase)
Dimensions: 362x500x160 mm
Fuses: 16A 1000VDC
MC4 multicontact connectors
Protection Degree: IP65
Material: ABS, Class II
Standard: UNE-EN 61439-1:2012; UNE-EN 60364-7-712:2017
Available: on demand
Conformity declaration
Technical sheet
│Base price: €
|
|
