DTI/DTS 9031

Cooling units 510 W

  • DTI: for partially recessed mounting in the door or side
  • DTS: for outer mounting on the door or side
  • Robust: steel cover, easily paintable
  • Suitable for use with a door width of 400 mm within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
  • Large distance between intake and exhaust vents, safe circulation
  • Integrated fault and door contact
  • DTI variants: fast mounting without drilling and adhering the electrical enclosure seal

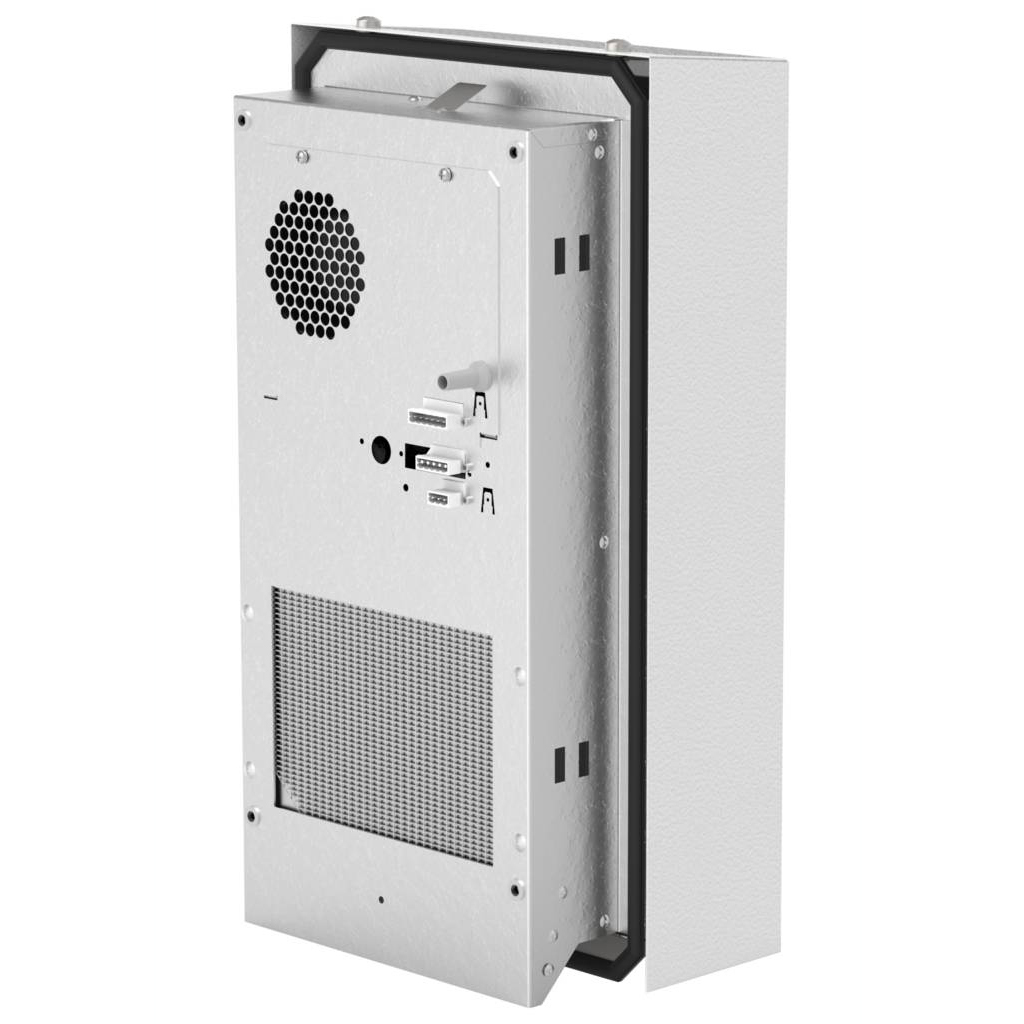

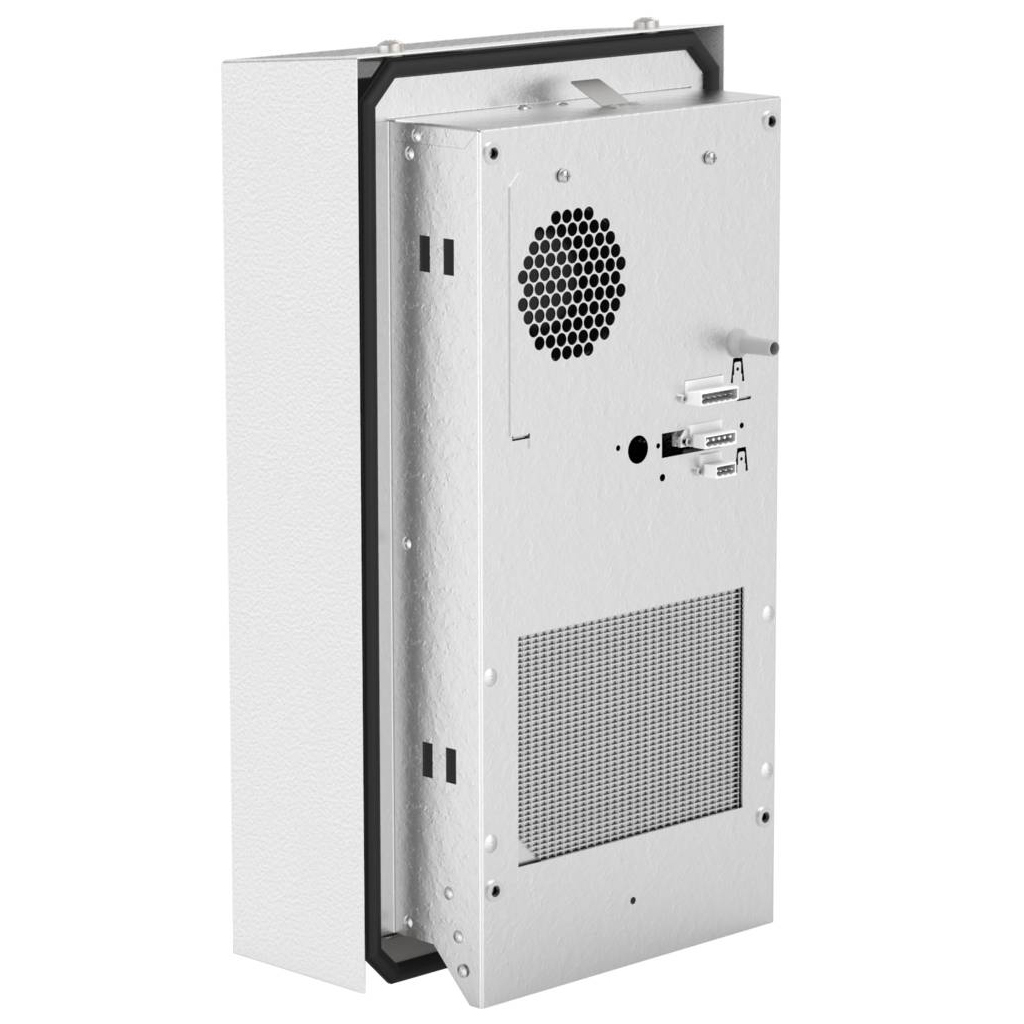

Partially recessed
mounting (DTI)


Side
mounting (DTS)


Protection
system


Large distance
in / out


Tool-less
mounting (DTI)


UL
approved


EAC
Conformity



MAKE A PRODUCT INQUIRY

PSS SIZING SOFTWARE



Technical data

Data DTI/DTS 9031
Rated voltage ± 10% AC 50/60 Hz AC 60 Hz
400 V 2~¹ 230 V 115 V
Cooling capacity according to EN 14511 A35/A35 410 / 540 W 510 / 580 W 585 W
A35/A50 305 / 360 W 365 / 395 W 545 W
Ambient temperature +15 … +55 °C / +59 … +131 °F
Degrees of protection according to EN 60529 IP 54 towards the electrical enclosure if used as intended by the manufacturer

¹ suitable for various supply voltages (see technical specific data sheet)
Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description Language Type Size Download
Declaration of conformity DTx 9xx1 English, German 55 KB DOWNLOAD
Declaration of conformity UKCA English 37 KB DOWNLOAD
Operating manual DTx 9x41 English, German, French, Italian, Spanish, Dutch, Swedish 1.9 MB DOWNLOAD
Manual Controller English, German, French, Italian, Spanish, Dutch, Swedish 4.6 MB DOWNLOAD
Operating manual DTx 9x31 English, German, French, Italian, Spanish, Dutch, Swedish 1.2 MB DOWNLOAD
Supplement Test mode + MM (MC) English, German, French, Italian, Spanish, Russian 250 KB DOWNLOAD
Supplement DTx 9031 230V SC English, German, French 450 KB DOWNLOAD
Supplement DTx 9031 115V SC English, German, French 450 KB DOWNLOAD
Supplement DTx 9031 400V 2~ SC English, German, French 750 KB DOWNLOAD
Supplement operating device English, German, French, Italian, Spanish, Dutch, Swedish 1.2 MB DOWNLOAD
Supplement DTx 9031 230V CC/MC English, German, French 480 KB DOWNLOAD
Supplement DTx 9031 400V 2~ MC English, German, French 760 KB DOWNLOAD
Supplement DTx 9031 115V CC/MC English, German, French 480 KB DOWNLOAD
Product sheet English 400 KB DOWNLOAD
3D-model DTS (STEP) English 1.1 MB DOWNLOAD
3D-model DTI 230V (STEP) English 2.4 MB DOWNLOAD
3D-model DTI 400V (STEP) English 2.1 MB DOWNLOAD
Cut-out English, German 93 KB DOWNLOAD
UL recognized certificate English 530 KB DOWNLOAD
EAC certificate Russian 1.6 MB DOWNLOAD



Ordering details

Ordering details DTI 9031
Type Rated voltage 400 V AC 230 V AC 115 V AC
Standard Controller Article number 13295049055 13295041055 13295044055
Multi Controller Article number - 13295071055 -

Ordering details DTS 9031
Type Rated voltage 400 V AC 230 V AC 115 V AC
Standard Controller Article number 13245049055 13245041055 13245044055
Multi Controller Article number 13245079055 13245071055 13245074055


Article numbers for other types on request



DIMENSIONS DTS 9031 DIMENSIONS DTI 9031

A 422 mm K 495 mm
B 215 mm L 265 mm
C 435 mm X 310 mm
D 235 mm Y 562 mm
E 8 mm Z1 145 mm
X 510 mm Z2 67 mm
Y 565 mm
Z 212 mm
