DTFI 9021

Cooling unit 320 W

Robust: steel cover, easily paintable
Compact design, ideal for flat control cabinets, control consoles and operating units
Diagnostic message via operating display
Integrated fault and door contact
Optionally available with integrated condensate evaporation system
Simple and fast mounting without drilling
Small structural height for integration in machine control cabinets
Cut-out compatible with 3rd and 4th Generation Filterfans, installation size 6

Partially recessed
mounting

Protection
system

Cut-out
compatible

UL
approved

EAC
Conformity

Data		DTFI 9021
Rated voltage ± 10%		AC 50/60 Hz		AC 60 Hz
		400 V 2~¹	230 V	115 V
Cooling capacity according to EN 14511	A35/A35	230 / 290 W	320 / 340 W	320 W
	A35/A50	220 / 280 W	300 / 330 W	250 W
Ambient temperature		+15 … +45 °C / +59 … +113 °F
Degrees of protection according to EN 60529	IP 54	towards the electrical enclosure if used as intended by the manufacturer

¹suitable for various supply voltages (see specific technical datasheet)

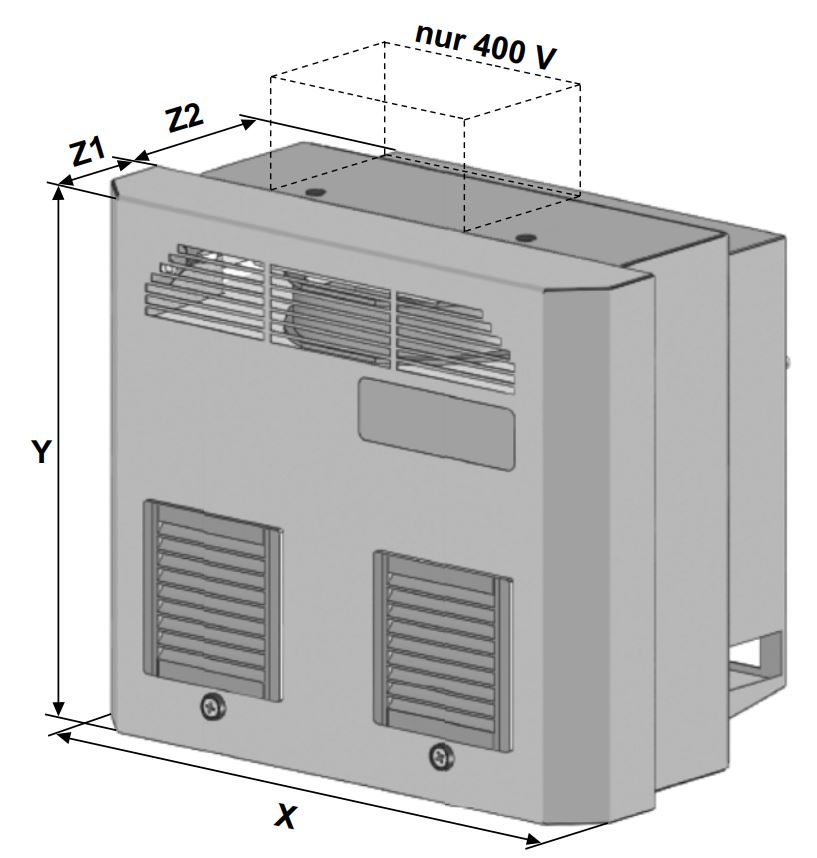

Further technical details, and dimensions can be found in the download section on this page under product sheet

Description	Language	Type	Size	Download
Declaration of conformity DTx 9xx1	English, German		55 KB	│DOWNLOAD
Declaration of conformity UKCA	English		37 KB	│DOWNLOAD
Operating manual DTFI/DTI 9021	English, German, French, Italian, Spanish		1.7 MB	│DOWNLOAD
Supplement DTI/DTFI 9021 230V	English, German, French		380 KB	│DOWNLOAD
Supplement DTI/DTFI 9021 115V 60Hz	English, German, French		430 KB	│DOWNLOAD
Supplement DTFI 9021 400V 2~SC	English, German, French		440 KB	│DOWNLOAD
Product sheet	English		550 KB	│DOWNLOAD
3D-model (STEP)	English		6.2 MB	│DOWNLOAD
Cut-out	English		51 KB	│DOWNLOAD
UL recognized certificate	English		530 KB	│DOWNLOAD
EAC certificate	Russian		1.6 MB	│DOWNLOAD
