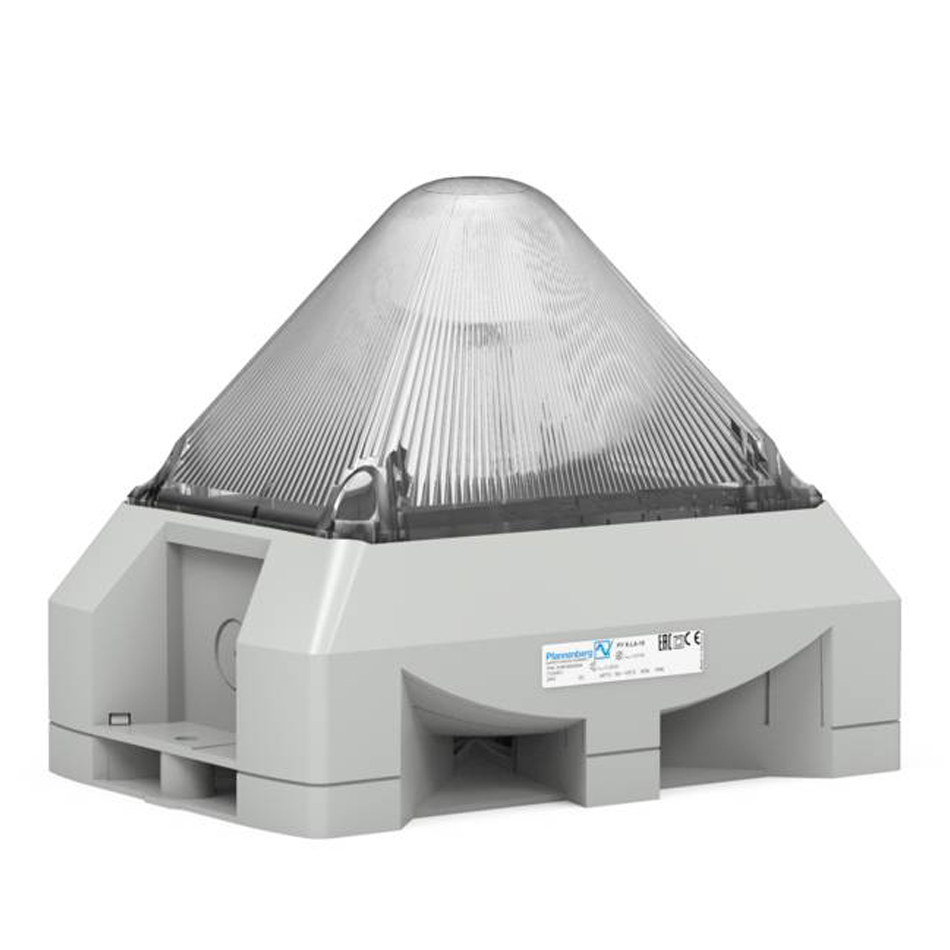

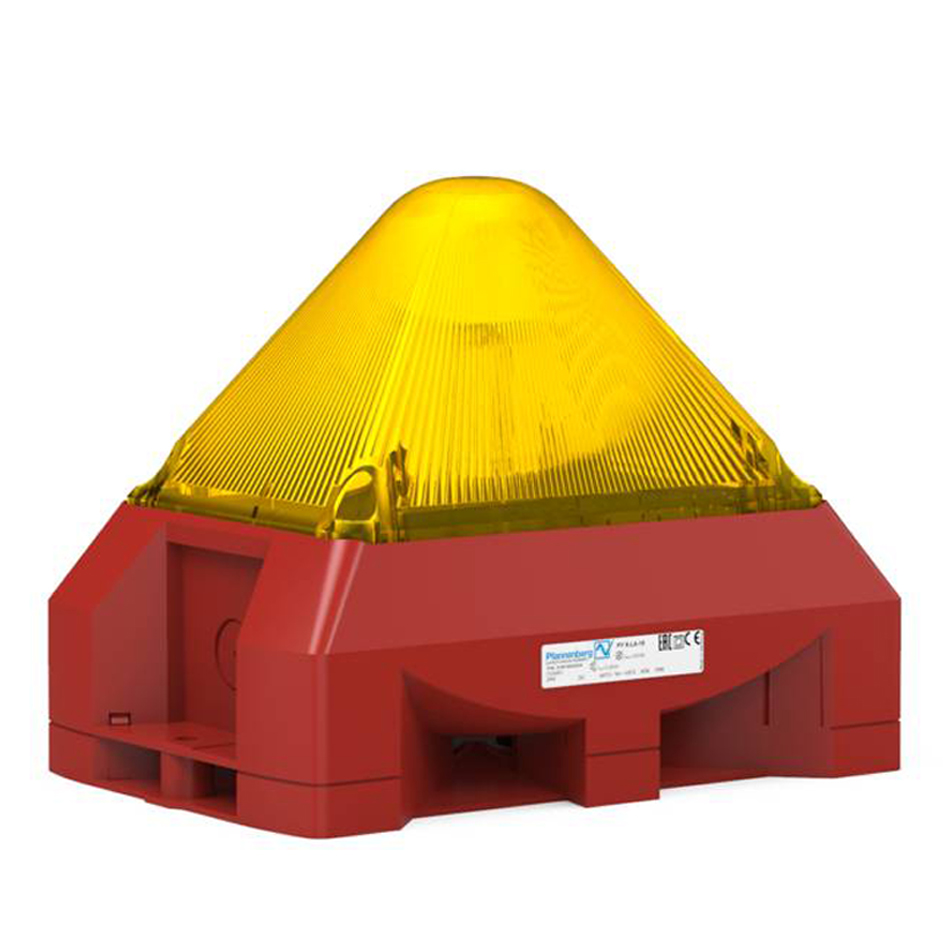

PY X-LA-15
|
|
PYRA® flashing light sounder 103 dB(A) / 15 J
|
|
|
|
|
|
|
|
|
|
|
|
PFANNENBERG 3D-COVERAGE
Size of acoustical coverage in meter (A x B x C)
| 80 dB (A) | 85 dB (A) | 90 dB (A) |  |
| 8,2 x 8,4 x 13,4 | 4,6 x 4,7 x 7,6 | 2,6 x 2,6 x 4,2 |
Coverage area with DIN tone and required sound levels.
Size of visual coverage in meter (A x B x C)
| INDICATE | WARNING | ALERT |  |
|
 Red |
65,7 x 41,4 x 81,9 | 29,2 x 18,4 x 36,4 | 14,6 x 9,2 x 18,2 | |
 Yellow |
100,8 x 66,2 x 105,8 | 44,8 x 29,4 x 47 | 22,4 x 14,7 x 23,5 | |
 Green |
81,9 x 53,6 x 85,5 | 36,4 x 23,8 x 38 | 18,2 x 11,9 x 19 | |
 Amber |
80,1 x 52,2 x 84,2 | 35,6 x 23,2 x 37,4 | 17,8 x 11,6 x 18,7 | |
 Blue |
52,2 x 34,7 x 55,4 | 23,2 x 15,4 x 24,6 | 11,6 x 7,7 x 12,3 | |
 Clear |
108,9 x 71,6 x 116,6 | 48,4 x 31,8 x 51,8 | 24,2 x 15,9 x 25,9 |
Technical data
| Electrical data | PY X-LA | |
| Rated voltage | 230 V AC | 24 V DC |
| Rated frequency | 50/60 Hz | - |
| Operating range | 187–255 V | 19.2–28.8 V |
| Nominal current consumption optical @ 1 Hz | 150 mA | 540 mA |
| Nominal current consumption acoustic | 15 mA | 20 mA |
Further technical details can be found in the download section on this page
Downloads
| Description | Language | Type | Size | Download |
| Declaration of Conformity CE | English, German |  |
40 KB | │DOWNLOAD |
| Declaration of Conformity UKCA | English | |
28 KB | │DOWNLOAD |
| Operating manual PY X-L(A)-15 | English, German, French, Russian, Italian | |
2.7 MB | │DOWNLOAD |
| Quick Guide PY X-M(A)/ -L (A) | English, German, French, Russian, Italian | |
560 KB | │DOWNLOAD |
| Product Sheet | English | |
370 KB | │DOWNLOAD |
| 3D-Model (IGS) | English |  |
6.4 MB | │DOWNLOAD |
| 3D-Model (SAT) | English | |
4.6 MB | │DOWNLOAD |
| 3D-Model (STEP) | English | |
5.2 MB | │DOWNLOAD |
| Drawing (DWG) | English | |
160 KB | │DOWNLOAD |
| Drawing (DXF) | English | |
180 KB | │DOWNLOAD |
| UL Certificate | English | |
180 KB | │DOWNLOAD |
| EAC Certificate | Russian | |
300 KB | │DOWNLOAD |
Ordering details
| Ordering details | housing red | PY X-LA | |
| Version | Rated voltage | 230 V AC | 24 V DC |
| Yellow lens | Article number | 21565103000 | 21565803000 |
| Amber lens | Article number | 21565104000 | 21565804000 |
| Red lens | Article number | 21565105000 | 21565805000 |
| Ordering details | housing grey | PY X-LA | |
| Version | Rated voltage | 230 V AC | 24 V DC |
| Yellow lens | Article number | 21565103055 | 21565803055 |
| Amber lens | Article number | 21565104055 | 21565804055 |
| Red lens | Article number | 21565105055 | 21565805055 |
Article numbers for products with further lens colours and voltages on request
