PAS 6043

εCOOL air/air heat exchangers 20 W/K

PAS: for outer mounting on the door or side
Robust steel cover, easily paintable

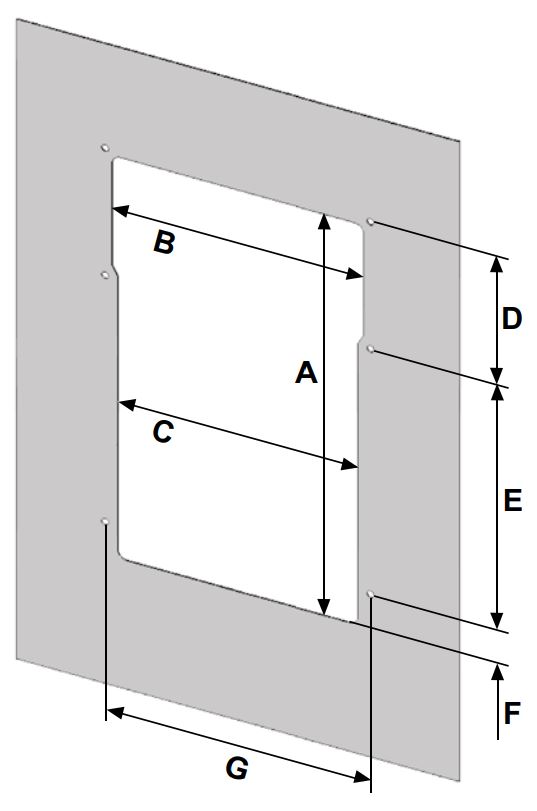

Cut-out compatible with DTS 9041
Mounting-friendly seal, no elaborate reworking of the mounting cut-out
Integrated thermostat for temperature control
Additional thermostat for excessive temperature warning
Maintenance-free
Large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated

Protection
system

Temperature
alarm

Temperature
control

Side
mounting

Cut-out compatible
to DT | A/W units

Data		PAS 6043
Rated voltage ± 10%		AC 50/60 Hz
		230 V 1~
Specific cooling capacity		20 W/K
Unimpeded airflow (free flow)	internal	240 / 280 m³/h
	external	240 / 280 m³/h
Ambient temperature		–25 … +55 °C / –13 … +131 °F
Degrees of protection according to EN 60529	IP 54	towards the electrical enclosure if used as intended by the manufacturer
	IP 34	towards the surroundings if used as intended by the manufacturer

Further technical details and dimensions can be found in the download section on this page under product sheet

Description	Language	Type	Size	Download
Declaration of conformity	English, German		150 KB	│DOWNLOAD
Operating manual PAX	English, German, French, Italian, Spanish		43 MB	│DOWNLOAD
Manual Filter Adapter PAX	English, German		350 KB	│DOWNLOAD
Technical data sheet PAX 6043	English, German, French		180 KB	│DOWNLOAD
Product sheet	English		600 KB	│DOWNLOAD
3D-model PAS (STEP)	English		1.3 MB	│DOWNLOAD
Cut-out PAS (DXF)	English		4.2 KB	│DOWNLOAD
