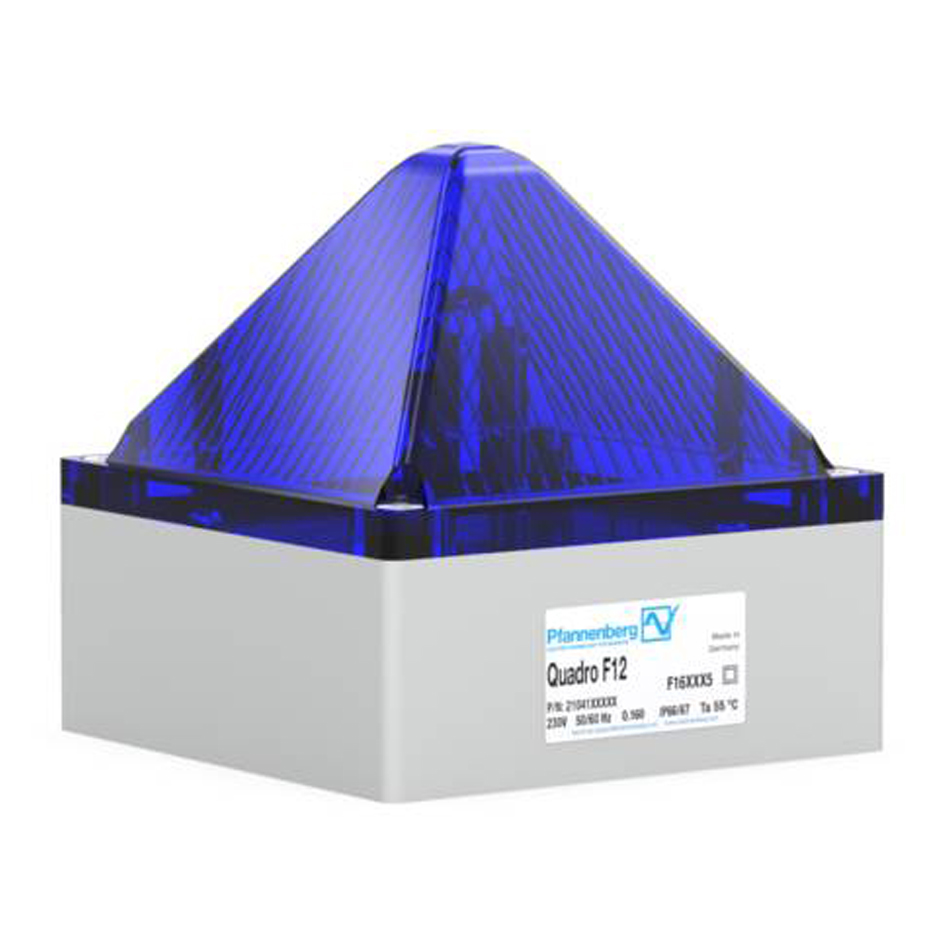

Quadro F12

  • Industrial successor to the legendary Eiffel Tower light
  • Design adapted to suit industrial requirements; mounted via concealed interior holes or external lugs; fast, flexible and secure
  • Outstanding mechanical strength with IP 66, IP 67 and IK08
  • Whether in the open air, in a hailstorm or when high pressure cleaning systems are used, the Quadro stays sealed and signals reliably

Quadro S

  • Automatic synchronised flashing light
  • A maximum of 10 flashing lights can be operated parallelly and synchronously over an unlimited time period; i.e. the flashes of all lights are generated simultaneously


Protection
system


Protection
system


Impact-proof
housing


Synchronous
operation (S)


Operating
temperature


Inrush current
limitation (F12)


EAC
conformity


Warranty



│MAKE A PRODUCT INQUIRY



PFANNENBERG 3D-COVERAGE

Size of visual coverage in meter (A x B x C)

  INDICATE WARNING ALERT
Red 73,8 x 52,7 x 71,6 32,8 x 23,4 x 31,8 16,4 x 11,7 x 15,9
Yellow 96,3 x 64,4 x 96,8 42,8 x 28,6 x 43 21,4 x 14,3 x 21,5
Green 90 x 64,8 x 87,8 40 x 28,8 x 39 20 x 14,4 x 19,5
Amber 86,4 x 62,2 x 84,2 38,4 x 27,6 x 37,4 19,2 x 13,8 x 18,7
Blue 63,9 x 45,9 x 62,1 28,4 x 20,4 x 27,6 14,2 x 10,2 x 13,8
White 101,7 x 68,4 x 102,6 45,2 x 30,4 x 45,6 22,6 x 15,2 x 22,8
Clear 115,2 x 82,8 x 112,1 51,2 x 36,8 x 49,8 25,6 x 18,4 x 24,9


Technical data

Electrical data Quadro F12
Rated voltage 230 V AC 115 V AC 24 V DC
Rated frequency 50/60 Hz 50/60 Hz -
Operating range 195–253 V 95–127 V 18–30 V
Nominal current consumption 250 mA 340 mA 700 mA
Initial current limited to <7 A / 150 μs <7 A / 150 μs <5 A / 2 ms

Electrical data Quadro S
Rated voltage 230 V AC
Rated frequency 50/60 Hz
Operating range 195–253 V
Nominal current consumption 250 mA
Initial current limited to <1 A / 50 ms

Choose a lens in one of the following colours: clear, white, yellow, amber, red, green, blue

Further technical details and dimensions can be found in the download section on this page under product sheet


Downloads

Description Language Type Size Download
Product sheet English 180 KB │DOWNLOAD
Operating manual Quadro F12, F05 English, German, French 140 KB │DOWNLOAD
Operating manual Quadro S English, German, French 510 KB │DOWNLOAD
3D-Model F12 (IGS) English 160 KB │DOWNLOAD
3D-Model S (IGS) English 180 KB │DOWNLOAD
3D-Model F12 (SAT) English 170 KB │DOWNLOAD
3D-Model S (SAT) English 130 KB │DOWNLOAD
3D-Model F12 (STEP) English 160 KB │DOWNLOAD
3D-Model S (STEP) English 140 KB │DOWNLOAD
EPLAN macro EDZ English 1.3 MB │DOWNLOAD
Declaration of conformity English, German 62 KB │DOWNLOAD
CE Declaration of conformity English, German 64 KB │DOWNLOAD
UKCA Declaration of conformity English 36 KB │DOWNLOAD
EAC certificate Russian 1.3 MB │DOWNLOAD


Ordering details

Ordering details Quadro F12 Quadro S
Lens colour Rated voltage 230 V AC 115 V AC 24 V DC 230 V AC
Clear Article number 21041101000 21041161000 21041801000 21042101000
Yellow Article number 21041103000 21041163000 21041803000 21042103000
Amber Article number 21041104000 21041164000 21041804000 21042104000
Red Article number 21041105000 21041165000 21041805000 21042105000


Article numbers for products with further lens colours and voltages on request
