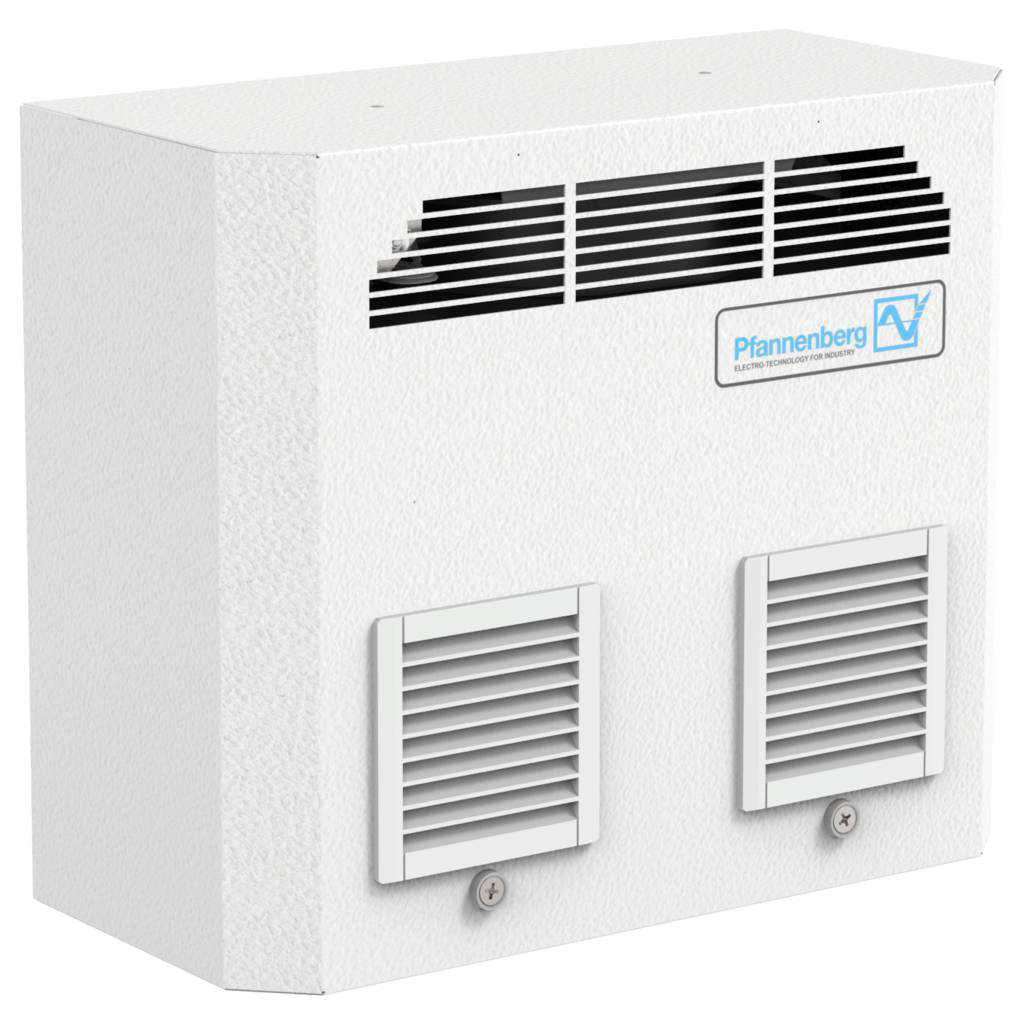

DTI 9021
|
|
Cooling unit 320 W
|
|
|
|
|
|
|
|
Technical data
| Data | DTI 9021 | ||
| Rated voltage ± 10% | AC 50/60 Hz | AC 60 Hz | |
| 230 V | 115 V | ||
| Cooling capacity according to EN 14511 | A35/A35 | 320 / 340 W | 320 W |
| A35/A50 | 300 / 330 W | 250 W | |
| Ambient temperature | +15 … +45 °C / +59 … +113 °F | ||
| Degrees of protection according to EN 60529 | IP 54 | towards the electrical enclosure if used as intended by the manufacturer | |
Further technical details, and dimensions can be found in the download section on this page under product sheet
Downloads
| Description | Language | Type | Size | Download |
| Declaration of conformity DTx 9xx1 | English, German |  |
55 KB | │DOWNLOAD |
| Declaration of conformity UKCA | English | |
37 KB | │DOWNLOAD |
| Operating manual DTFI/DTI 9021 | English, German, French, Italian, Spanish | |
1.7 MB | │DOWNLOAD |
| Supplement DTI/DTFI 9021 230V | English, German, French | |
380 KB | │DOWNLOAD |
| Supplement DTI/DTFI 9021 115V 60Hz | English, German, French | |
430 KB | │DOWNLOAD |
| Product sheet | English | |
550 KB | │DOWNLOAD |
| 3D-model (STEP) | English |  |
1.9 MB | │DOWNLOAD |
| Cut-out | English | |
54 KB | │DOWNLOAD |
| UL recognized certificate | English | |
530 KB | │DOWNLOAD |
| EAC certificate | Russian | |
1.6 MB | │DOWNLOAD |
Ordering details
| Ordering details | DTI 9021 | ||
| Type | Rated voltage | 230 V AC | 115 V AC |
| Standard Controller | Article number | 13293041055 | 13293044055 |
Article numbers for other types on request
| DIMENSIONS DTI 9021 | ||
  |
||
| A | 289 mm | |
| B | 304 mm | |
| C | 304 mm | |
| D | 210 mm | |
| E | 7,5 mm | |
| X | 385 mm | |
| Y | 329 mm | |
| Z1 | 178 mm | |
| Z2 | 67 mm | |
 |
