Enclosures 8 modules

WIRED ENCLOSURES INDUBOX 8 MODULES

Features

IP of Enclosure: IP65
Resistance to impact: IK08
Insulation: Class II
Halogen free
Standard: EN 61439-1, EN 61439-3, EN 61439-4, EN 62208

CATALOGUE

CONFORMITY DECLARATION

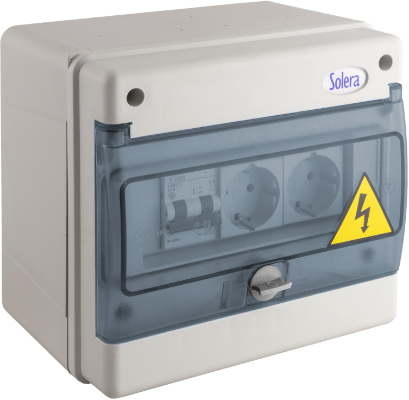

EXAMPLES OF WIRED ENCLOSURES INDUBOX 8 MODULES

1308P-C5

Modules: 8
2 sockets 2P+E 16A 250V IP44
1 socket 2P+E 16A 250V IP54 schuko
Dimensions: 215x500x160 mm
Protection degree of the enclosure: IP65 / IK08
Available: yes

Technical data
Conformity declaration

│Price: 43,90 €

1308P-I7

Modules: 8
6 sockets 2P+E 16A 250V IP54 schuko
6 circuit breakers 1P 16A
1 RCCB 2P 25A, 30 mA
Dimensions: 215x500x160 mm
Protection degree of the enclosure: IP65 / IK08
Available: yes

Technical data
Conformity declaration

│Price: 81,20 €

1308P-I33

Modules: 8
1 socket 2P+E 16A 250V IP44
1 socket 2P+E 16A 250V IP54 schuko
1 socket 3P+N+E 32A 400V IP44
2 circuit breakers 2P 16A
1 circuit breaker 4P 32A
Dimensions: 215x500x160 mm
Protection degree of the enclosure: IP65 / IK08
Available: yes

Technical data

│Price: 75,90 €

1308P-I35

Modules: 8
1 socket 2P+E 16A 250V IP44
1 socket 2P+E 16A 250V IP54 schuko
1 socket 3P+N+E 16A 400V IP44
2 circuit breakers 2P 16A
1 circuit breaker 4P 16A
Dimensions: 215x500x160 mm
Protection degree of the enclosure: IP65 / IK08
Available: yes

Technical data

│Price: 72,50 €

1308P-I34

Modules: 8
2 sockets 2P+E 16A 250V IP44
1 socket 3P+N+E 32A 400V IP44
2 circuit breakers 2P 16A
1 circuit breaker 4P 32A
Dimensions: 215x500x160 mm
Protection degree of the enclosure: IP65 / IK08
Available: yes

Technical data

│Price: 78,80 €

1308P-I36

Modules: 8
2 sockets 2P+E 16A 250V IP44
1 socket 3P+N+E 16A 400V IP44
2 circuit breakers 2P 16A
1 circuit breaker 4P 16A
Dimensions: 215x500x160 mm
Protection degree of the enclosure: IP65 / IK08
Available: yes

Technical data

│Price: 76,70 €
