PY X-S-05
| |

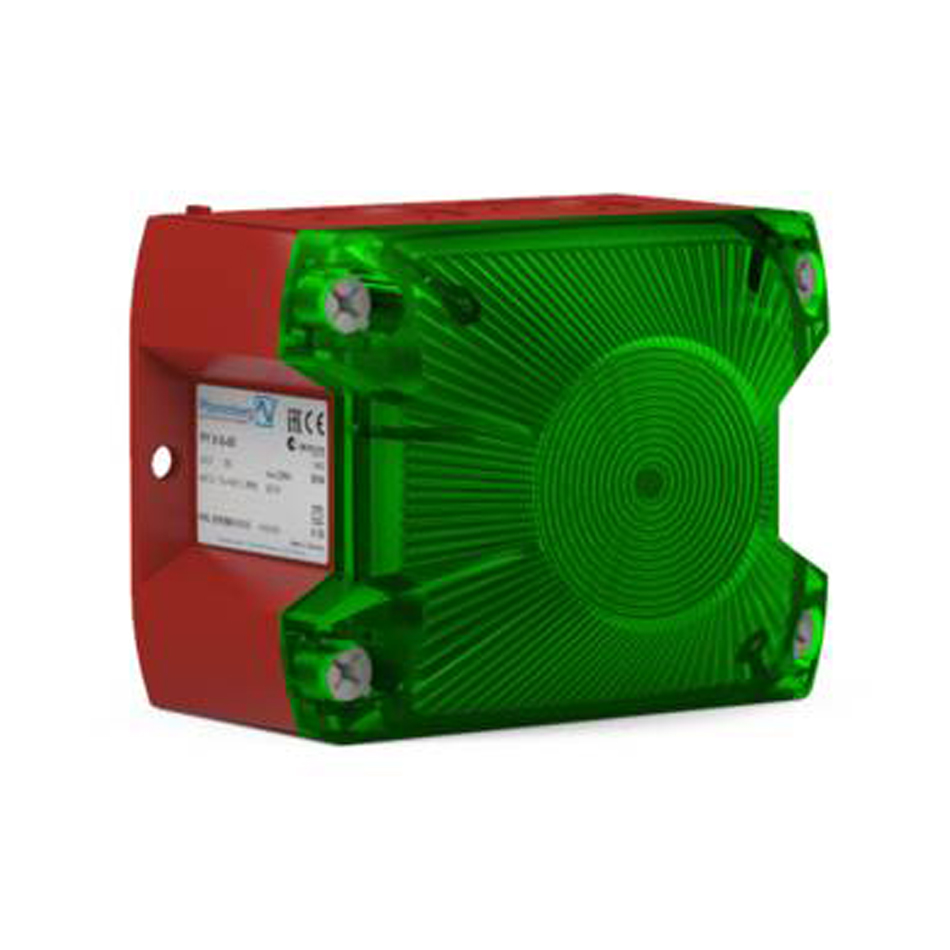

PYRA® compact flashing light 5 J The compact flashing light is not only adaptable to many applications, but it is also impressive due to its safe and simple mounting
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PFANNENBERG 3D-COVERAGE
Size of visual coverage in meter (A x B x C)
| INDICATE | WARNING | ALERT |  |
|
 Red |
25,2 x 22,1 x 27,5 | 11,2 x 9,8 x 12,2 | 5,6 x 4,9 x 6,1 | |
 Yellow |
36 x 27,5 x 48,2 | 16 x 12,2 x 21,4 | 8 x 6,1 x 10,7 | |
 Green |
34,4 x 29,4 x 38,1 | 15,3 x 13,1 x 17 | 7,7 x 6,5 x 8,5 | |
 Amber |
34,2 x 26,1 x 36 | 15,2 x 11,6 x 16 | 7,6 x 5,8 x 8 | |
 Blue |
25,2 x 21,5 x 28 | 11,2 x 9,6 x 12,4 | 5,6 x 4,8 x 6,2 | |
 Clear |
45,9 x 39,2 x 50,9 | 20,4 x 17,4 x 22,6 | 10,2 x 8,7 x 11,3 |
Technical data
| Electrical data | AC | PY X-S-05 | ||
| Rated voltage | 230 V AC | 115 V AC | 24 V AC | |
| Rated frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | |
| Operating range | 184–253 V | 92–127 V | 18–30 V | |
| Nominal current consumption | 55 mA | 100 mA | 800 mA | |
| Electrical data | DC | PY X-S-05 | ||
| Rated voltage | 48 V DC | 24 V DC | 12 V DC | |
| Operating range | 40–60 V | 18–30 V | 12–15 V | |
| Nominal current consumption | 170 mA | 300 mA | 600 mA | |
Further technical details and dimensions can be found in the download section on this page under product sheet
Downloads
| Description | Language | Type | Size | Download |
| CE Declaration of conformity | English, German |  |
39 KB | │DOWNLOAD |
| UKCA Declaration of conformity | English | |
29 KB | │DOWNLOAD |
| Product sheet | English | |
800 KB | │DOWNLOAD |
| Operating manual PY X-S-05 | English, German, French, Italian, Russian | |
1.7 MB | │DOWNLOAD |
| Quick Guide PY X-S-05 | English, German, French, Italian, Russian | |
400 KB | │DOWNLOAD |
| 3D-Model (IGS) | English |  |
800 KB | │DOWNLOAD |
| 3D-Model (SAT) | English | |
400 KB | │DOWNLOAD |
| 3D-Model (STEP) | English | |
330 KB | │DOWNLOAD |
| EPLAN macro EDZ | English | |
5.4 MB | │DOWNLOAD |
| Drawing (DWG) | English, German |  |
1.1 MB | │DOWNLOAD |
| Support for planning | English | |
1.3 MB | │DOWNLOAD |
| Declaration of Performance | English, German | |
1.3 MB | │DOWNLOAD |
| Pin assignment of optional M12 connector | English, German | |
320 KB | │DOWNLOAD |
| CNBOP certificate | Polish | |
1.7 MB | │DOWNLOAD |
| EU EN 54-23 certificate | English, German | |
69 KB | │DOWNLOAD |
| UK EN 54-23 certificate | English | |
210 KB | │DOWNLOAD |
| DNV/GL Type Approval | English | |
190 KB | │DOWNLOAD |
| UL certificate | English | |
190 KB | │DOWNLOAD |
| VdS approval lens colours red & clear | English, German | |
690 KB | │DOWNLOAD |
| VdS approval lens colours white, yellow, amber, green, blue | English, German | |
630 KB | │DOWNLOAD |
| EAC certificate | Russian | |
300 KB | │DOWNLOAD |
| EAC 043/2017 certificate (fire alarm) | Russian | |
1.0 MB | │DOWNLOAD |
Ordering details
| Ordering details | Housing red | PY X-S-05 | ||
| Lens colour | Rated voltage | 230 V AC | 115 V AC | 24 V DC |
| Clear | Article number | 21510101000 | 21510151000 | 21510801000 * |
| Yellow | Article number | 21510103000 | 21510153000 | 21510803000 |
| Amber | Article number | 21510104000 | 21510154000 | 21510804000 |
| Red | Article number | 21510105000 | 21510155000 | 21510805000 * |
| Ordering details | Housing grey | PY X-S-05 | ||
| Lens colour | Rated voltage | 230 V AC | 115 V AC | 24 V DC |
| Clear | Article number | 21510101055 | 21510151055 | 21510801055 * |
| Yellow | Article number | 21510103055 | 21510153055 | 21510803055 |
| Amber | Article number | 21510104055 | 21510154055 | 21510804055 |
| Red | Article number | 21510105055 | 21510155055 | 21510805055 * |
* Devices with EN 54-23 approval
Article numbers for products with further lens colours and voltages on request
