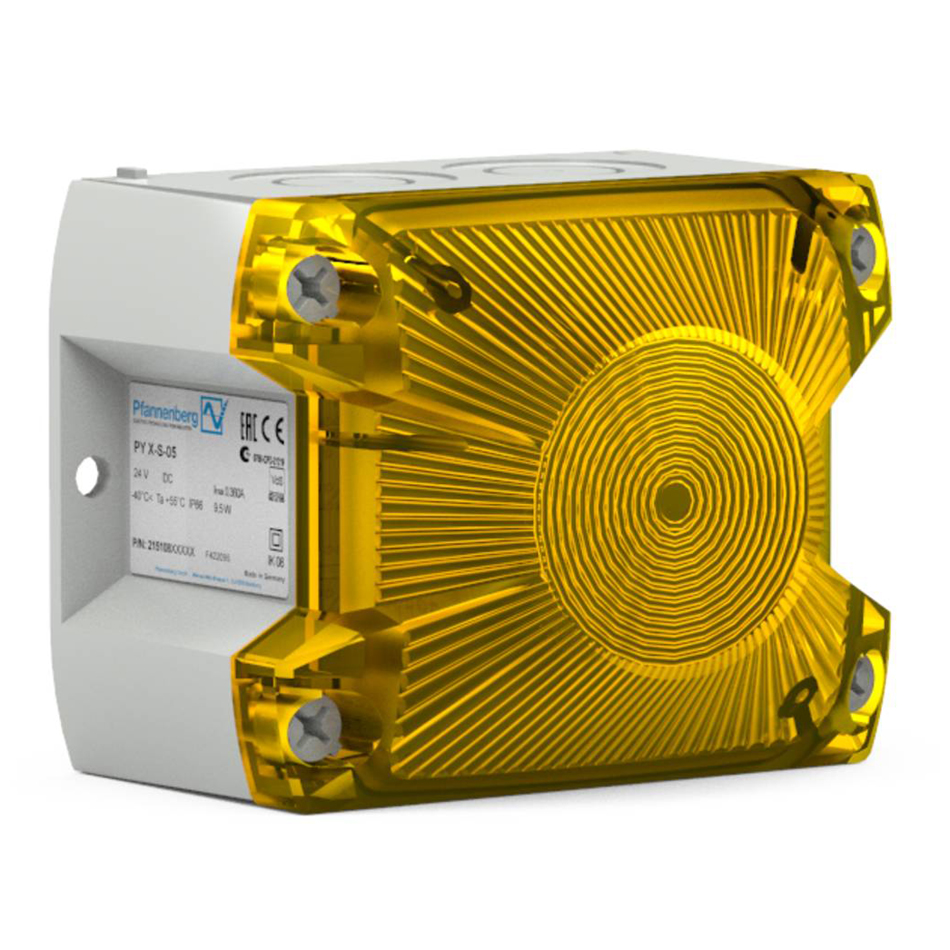

PYRA® compact multifunctional LED light

Most flexible, ultra bright RGB multi colour or single colour LED technology

Selectable signaling modes - No matter which signaling mode is required - you are able to choose the one that fits to your needs
Selectable Colour (RGB version only) - Not sure about the colour yet? One light for all your needs! PYRA® LED RGB permits to choose the colour you require. Stay flexible and keep your stock to a minimum
External colour & mode control (RGB version only) - Whether operation or error indication or any other status - with PYRA® LED RGB you can state several situations with only one light. Feel free to choose and change colour and mode easily by remote control
Selectable blink & flash frequencies - Adaptable to all your applications - select the frequency your gadget requires and boost the perceptibility
Multi-voltage-power supply - Plug and play - made to connect with different voltages. No need to stock various units - PYRA® LED adapts to most machines and applications no matter the voltage
Panel mount installation - Flat, smart, discrete, clean and 360° visible - fully integrable into the design of your machine and equipment

Multi colour LED (option)	Warranty 10 years	Protection system	NEMA 4/4X	Impact-proof housing
Brightness adjustable	Operating temperature	EAC conformity	UL approval	Connector (option)

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

PFANNENBERG 3D-COVERAGE

Size of visual coverage in meter (A x B x C) single colour LED

	INDICATE	WARNING	ALERT
Red	26,1 x 9,9 x 12,6	11,6 x 4,4 x 5,6	5,8 x 2,2 x 2,8
Yellow	32,4 x 14 x 14,4	14,4 x 6,2 x 6,4	7,2 x 3,1 x 3,2
Green	27 x 9,9 x 9,9	12 x 4,4 x 4,4	6 x 2,2 x 2,2
Amber	25,2 x 9,5 x 9	11,2 x 4,2 x 4	5,6 x 2,1 x 2
Blue	10,8 x 4,5 x 9	4,8 x 2 x 4	2,4 x 1 x 2
Clear	35,1 x 14,9 x 14,2	15,6 x 6,6 x 6,4	7,8 x 3,3 x 3,2

Size of visual coverage in meter (A x B x C) multi-colour LED (RGB)

	INDICATE	WARNING	ALERT
Red	16,2 x 13,1 x 12,6	7,2 x 5,8 x 5,6	3,6 x 2,9 x 2,8
Yellow	22,5 x 17,6 x 18	10 x 7,8 x 8	5 x 3,9 x 4
Green	16,2 x 12,6 x 12,6	7,2 x 5,6 x 5,6	3,6 x 2,8 x 2,8
Blue	9 x 6,8 x 9	4 x 3 x 4	2 x 1,5 x 2
White	17,1 x 14 x 13,5	7,6 x 6,2 x 6	3,8 x 3,1 x 3

Technical data

Electrical data	PY L-S RGB - PY L-S
Rated voltage	115/230 V AC	120 V DC	24 V AC	12/48 V DC
Rated frequency	50/60 Hz	-	50/60 Hz	-
Operating range	95–265 V	108–132 V	21.6-26.4 V	10–60 V
Nominal current consumption	36 mA @ 230 V AC	25 mA @ 120 V DC	167 mA @ 24 V AC	120 mA @ 24 V DC

Further technical details and dimensions can be found in the download section on this page under product sheet

Downloads

Description	Language	Type	Size	Download
CE Declaration of conformity	English, German		35 KB	│DOWNLOAD
UKCA Declaration of conformity	English		26 KB	│DOWNLOAD
Quick guide PY L-S	English, German, French, Italian, Russian		2.2 MB	│DOWNLOAD
Operating manual PY L-S	English, German, French, Italian, Russian		1.9 MB	│DOWNLOAD
Product sheet	English		610 KB	│DOWNLOAD
3D-Models (IGS, SAT, STEP)	English		1.2 MB	│DOWNLOAD
EPLAN macro EDZ	English		3.4 MB	│DOWNLOAD
Pin assignment of optional M12 connector	English, German		320 KB	│DOWNLOAD
EAC certificate	Russian		300 KB	│DOWNLOAD
UL certificate	English		190 KB	│DOWNLOAD

Ordering details

Ordering details			PY L-S
Light/lens colour	Base colour	Rated voltage	15/230 V AC; 120 V DC	12/48 V DC
RGB - all colours/white	Grey	Article number	21513648055	21513818055
Yellow	Grey	Article number	21513643055	21513813055
Amber	Grey	Article number	21513644055	21513814055
Red	Grey	Article number	21513645055	21513815055
Green	Grey	Article number	21513646055	21513816055

Other article numbers on request. Available lens colours are red, amber, yellow, green, blue and clear.
RGB - multi colour version has got a white lens. Available standard base colours are grey and red.
