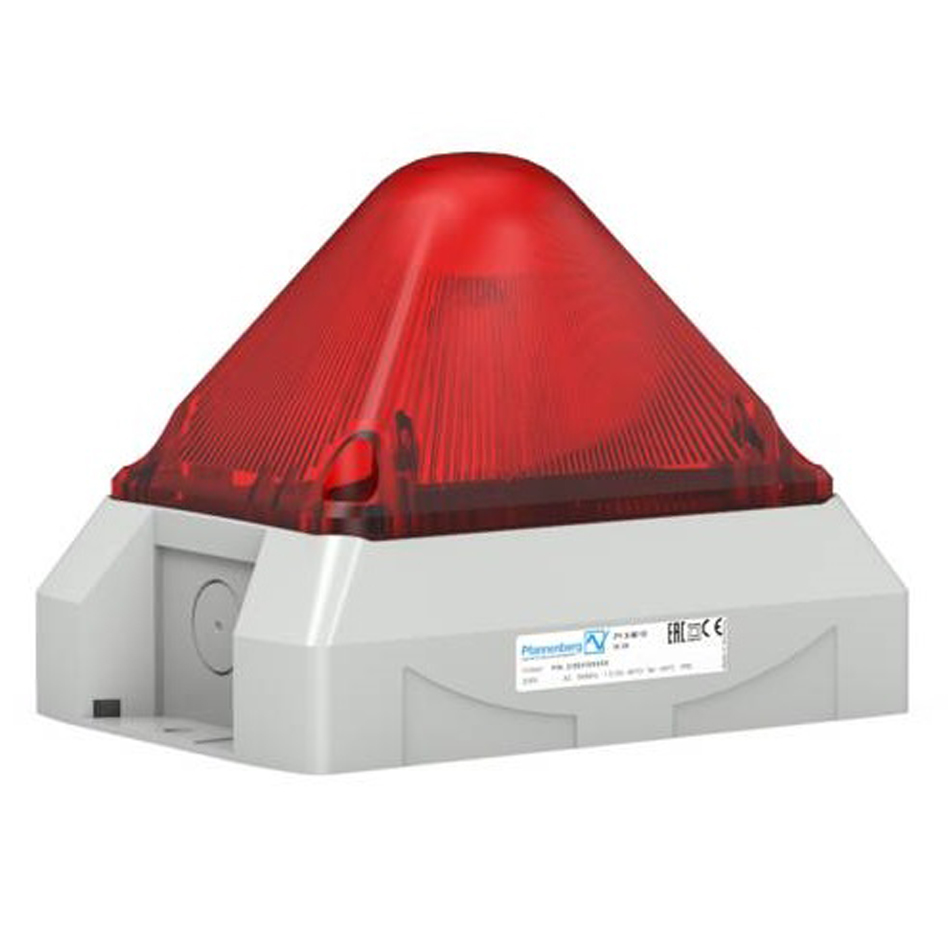

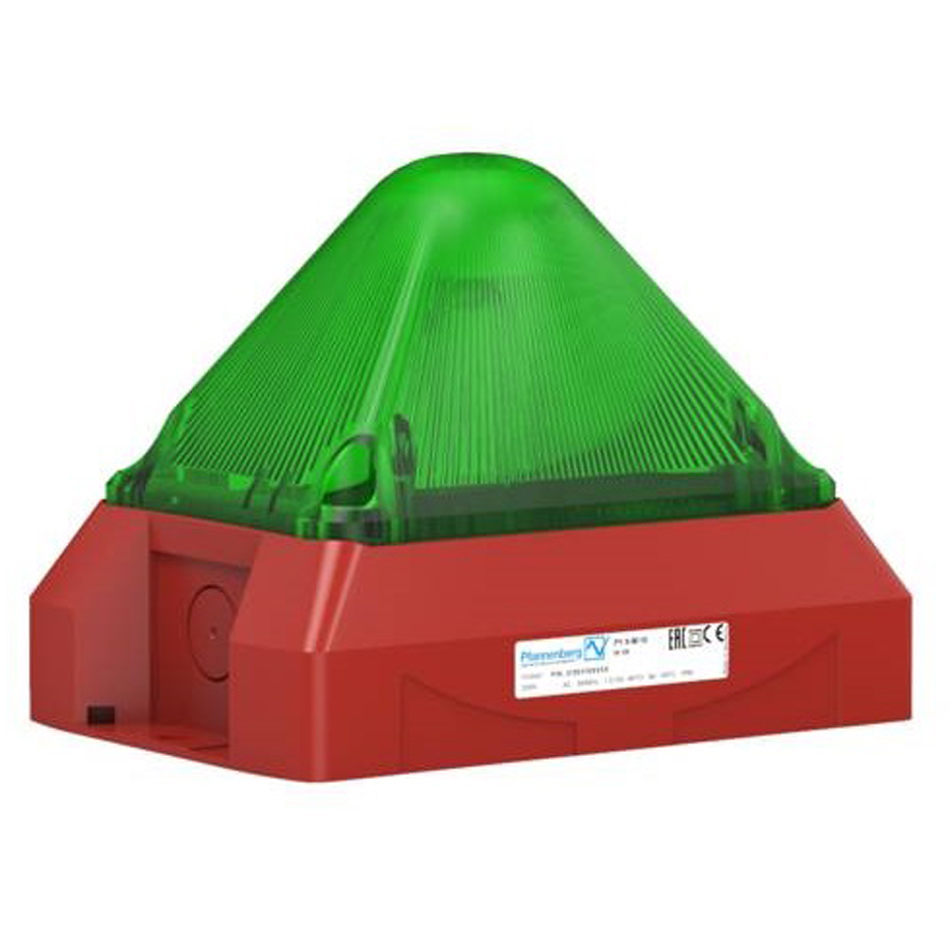

PYRA® flashing light 10 J

  • Safe: an incorrect installation is virtually impossible
  • Easy: significantly shorter assembly and installation times
  • Economical: largest possible signaling range due to effective Xenon technology
  • Installation options with external lugs or internal holes
  • Choice of four different flash rates via DIP switch
  • Suitable for panel mounting
  • Electronic constant current regulation at 24 V DC devices to avoid load fluctuations
  • Integrated inrush current limitation and under voltage detection (option)
  • Providing full synchronisation on multi-flashing light systems


Protection
system


Impact-proof
housing


NEMA
4/4X


Operating
temperature


Connector
(option)


Inrush current
limitation (SSM version)


VdS conformity
(SSM version)


UL
approved


CNBOP
conformity


EN 54-23 conformity
(SSM version)


EAC
conformity


Warranty



│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE



PFANNENBERG 3D-COVERAGE

Size of visual coverage in meter (A x B x C)

  INDICATE WARNING ALERT
Red 50,4 x 31,5 x 63 22,4 x 14 x 28 11,2 x 7 x 14
Yellow 69,3 x 38,7 x 87,3 30,8 x 17,2 x 38,8 15,4 x 8,6 x 19,4
Green 61,2 x 33,8 x 76,5 27,2 x 15 x 34 13,6 x 7,5 x 17
Amber 57,6 x 32 x 72 25,6 x 14,2 x 32 12,8 x 7,1 x 16
Blue 45 x 24,8 x 55,8 20 x 11 x 24,8 10 x 5,5 x 12,4
Clear 81 x 45 x 101,7 36 x 20 x 45,2 18 x 10 x 22,6


Technical data

Electrical data PY X-M-10
Rated voltage 230 V AC 115 V AC 12 / 24 / 48 V DC
Rated frequency 50/60 Hz 50/60 Hz -
Operating range 187–255 V 90–135 V 10–57 V
Nominal current consumption @ 1 Hz 150 mA 240 mA 540 mA @ 24 V

Further technical details and dimensions can be found in the download section on this page under product sheet


Downloads

Description Language Type Size Download
CE Declaration of conformity English, German 40 KB │DOWNLOAD
UKCA Declaration of conformity English 29 KB │DOWNLOAD
Product sheet English 560KB │DOWNLOAD
Operating manual PY X-M(A)-05/10 English, German, French, Russian, Italian 2.4 MB │DOWNLOAD
Quick Guide PY X-M(A)/ -L (A) English, German, French, Russian, Italian 560 KB │DOWNLOAD
3D-Model (IGS) English 1.0 MB │DOWNLOAD
3D-Model (SAT) English 1.2 MB │DOWNLOAD
3D-Model (STEP) English 1.0 MB │DOWNLOAD
EPLAN macro EDZ English 2.7 MB │DOWNLOAD
Support for planning English 840 KB │DOWNLOAD
Declaration of Performance English 1.3 MB │DOWNLOAD
EN54-23 certificate English, German 340 KB │DOWNLOAD
UL certificate English 380 KB │DOWNLOAD
VdS approval lens colours red & clear English, German 660 KB │DOWNLOAD
VdS approval lens colours white, yellow, amber, green, blue English, German 1.7 MB │DOWNLOAD
EAC certificate Russian 300 KB │DOWNLOAD
CNBOP certificate (24V DC, SSM) Polish 300 KB │DOWNLOAD



Ordering details

Ordering details Housing red PY X-M-10 PY X-M-10-SSM (EN 54-23)
Lens colour Rated voltage 230 V AC 115 V AC 24 V DC 24 V DC
Clear Article number 21551101000 21551151000 21551811000 21551801005
Yellow Article number 21551103000 21551153000 21551813000 -
Amber Article number 21551104000 21551154000 21551814000 -
Red Article number 21551105000 21551155000 21551815000 21551805005

Ordering details Housing grey PY X-M-10 PY X-M-10 SSM (EN 54-23)
Lens colour Rated voltage 230 V AC 115 V AC 24 V DC 24 V DC
Clear Article number 21551101055 21551151055 21551811055 21551801061
Yellow Article number 21551103055 21551153055 21551813055 -
Amber Article number 21551104055 21551154055 21551814055 -
Red Article number 21551105055 21551155055 21551815055 21551805061


Article numbers for products with further lens colours and voltages on request



Options / Accessories

│SURFACE GASKET
FOR PY M / MA

│LOCKING ELEMENTS
FOR PATROL / PYRA®

│TAMPER-PROOF SEALING
FOR PATROL / PYRA®

│PANEL MOUNT INSTALLATION
KIT PY X-M
