ABL-ABS
| |

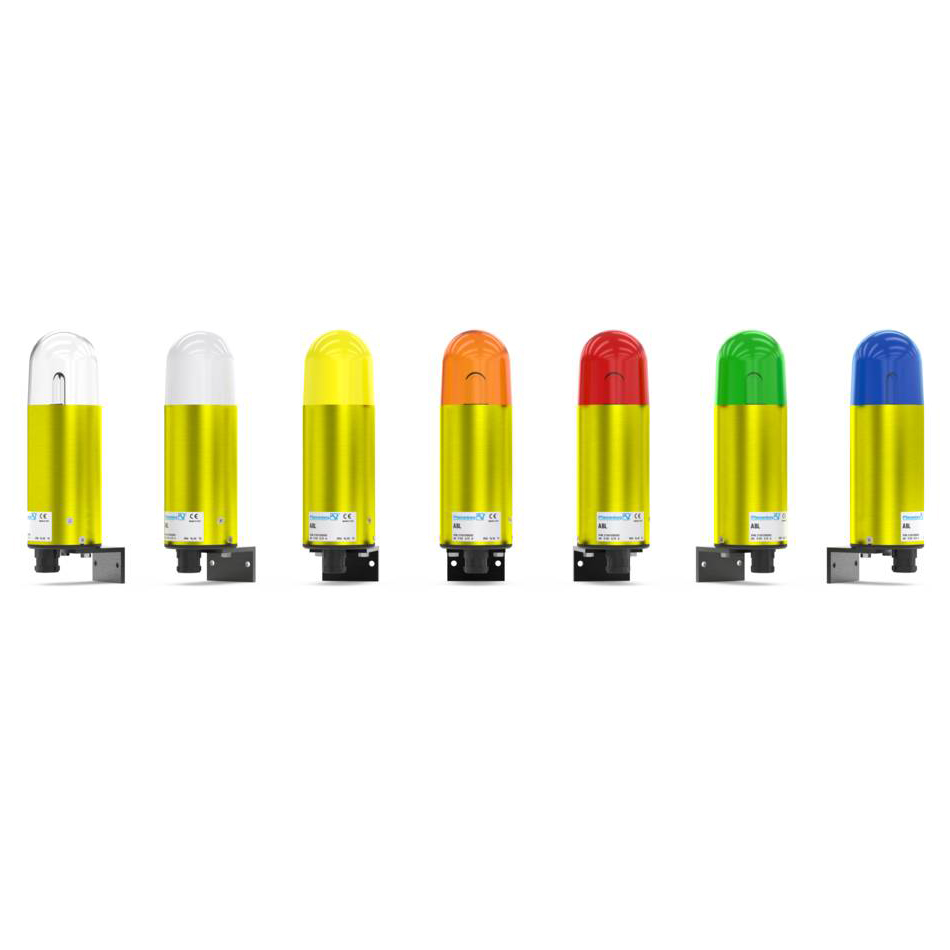

Flashing alarm lights 15 J
|
|
|
|
|
|
|
PFANNENBERG 3D-COVERAGE
Size of visual coverage in meter (A x B x C)
| INDICATE | WARNING | ALERT |  |
|
 Red |
85,5 x 107,1 x 107,1 | 38 x 47,6 x 47,6 | 19 x 23,8 x 23,8 | |
 Yellow |
111,6 x 130,5 x 130,5 | 49,6 x 58 x 58 | 24,8 x 29 x 29 | |
 Green |
87,3 x 108,9 x 108,9 | 38,8 x 48,4 x 48,4 | 19,4 x 24,2 x 24,2 | |
 Amber |
98,1 x 123,3 x 123,3 | 43,6 x 54,8 x 54,8 | 21,8 x 27,4 x 27,4 | |
 Blue |
29,7 x 36,9 x 36,9 | 13,2 x 16,4 x 16,4 | 6,6 x 8,2 x 8,2 | |
 White |
96,3 x 113,9 x 113,9 | 42,8 x 50,6 x 50,6 | 21,4 x 25,3 x 25,3 | |
 Clear |
127,8 x 160,2 x 160,2 | 56,8 x 71,2 x 71,2 | 28,4 x 35,6 x 35,6 |
Technical data
| Electrical data | AC | ABL | ||
| Rated voltage | 230 V AC | 110 V AC | 24 V AC | |
| Rated frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | |
| Operating range | 185–255 V | 95–127 V | 20–30 V | |
| Nominal current consumption | 0.18 A | 0.33 A | 1.29 A | |
| Electrical data | DC | ABS |
| Rated voltage | 24 V DC | |
| Operating range | 18–30 V | |
| Nominal current consumption | 0.7 A | |
Further technical details and dimensions can be found in the download section on this page under product sheet
Downloads
| Description | Language | Type | Size | Download |
| CE Declaration of conformity | English, German |  |
40 KB | │DOWNLOAD |
| UKCA Declaration of conformity | English | |
29 KB | │DOWNLOAD |
| Product sheet | English | |
340 KB | │DOWNLOAD |
| Operating manual ABx, WBx | English, German, French | |
670 KB | │DOWNLOAD |
| Quick Guide ABx, WBx | English, German, French | |
290 KB | │DOWNLOAD |
| EPLAN macro EDZ | English |  |
730 KB | │DOWNLOAD |
| DNV/GL Type Approval | English | |
110 KB | │DOWNLOAD |
| EAC certificate | Russian | |
300 KB | │DOWNLOAD |
Ordering details
| Ordering details | ABL | ABS | ||
| Lens colour | Rated voltage | 230 V AC | 110 V AC | 24 V DC |
| Yellow | Article number | 21001103000 | 21001163000 | 21001803000 |
| Amber | Article number | 21001104000 | 21001164000 | 21001804000 |
| Red | Article number | 21001105000 | 21001165000 | 21001805000 |
Choose a lens in one of the following colours: clear, white, yellow, amber, red, green, blue
Article numbers for products with further lens colours and voltages on request
