CWB-ATEX

Flashing light 5 J

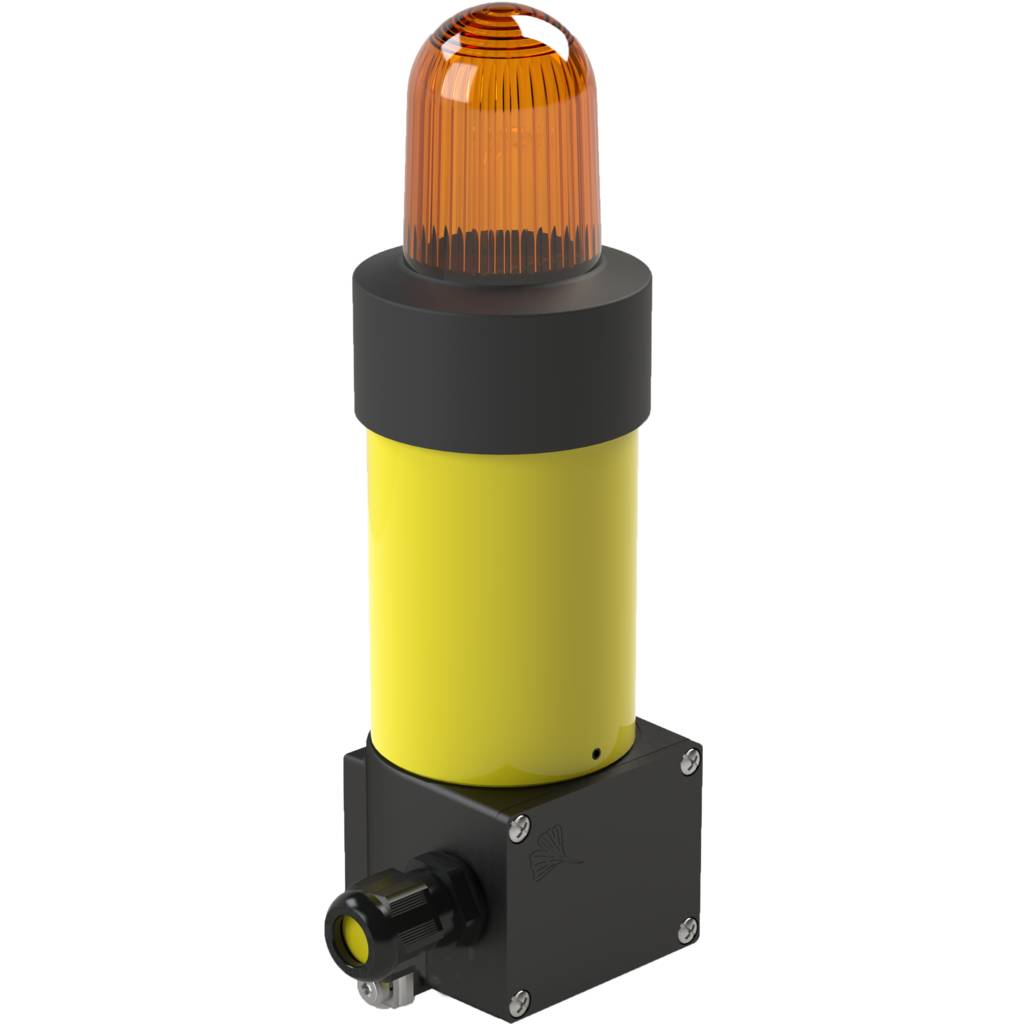

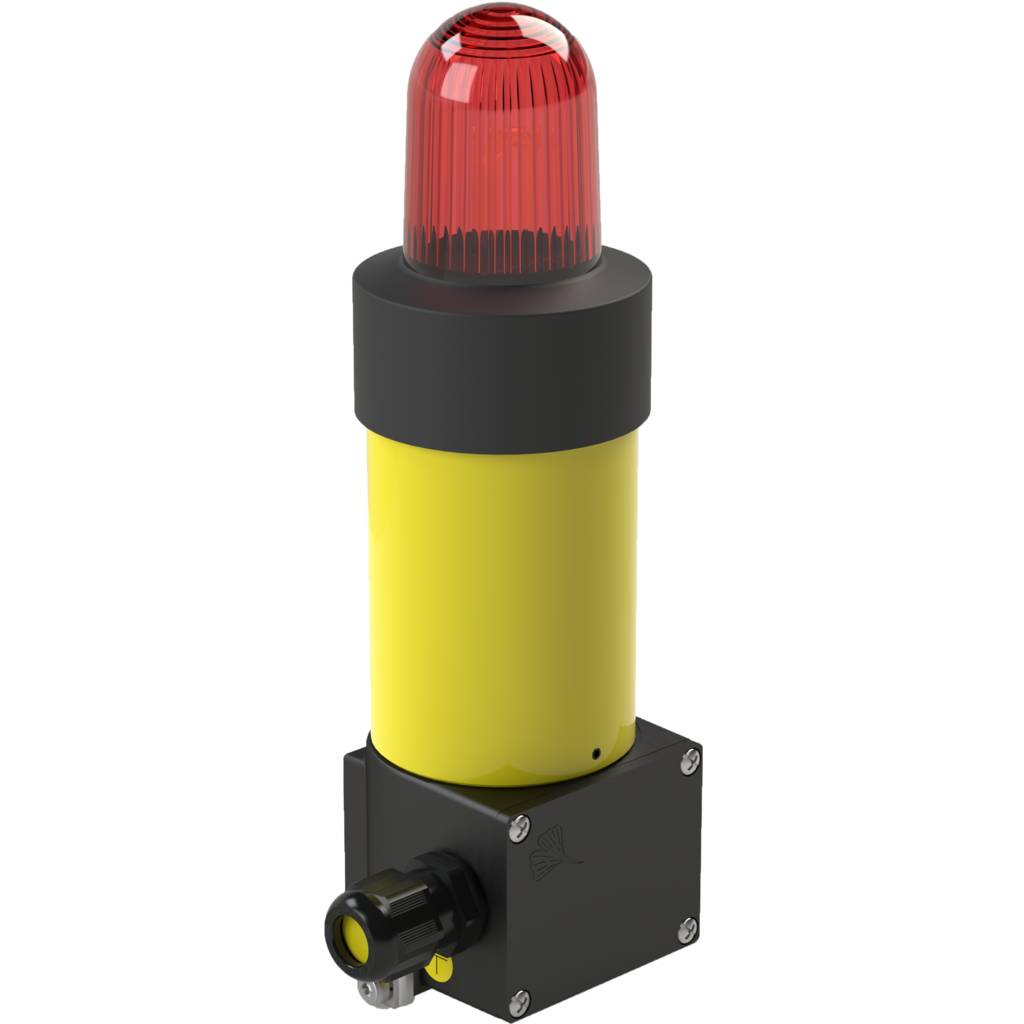

The flashing lights from the CWB-ATEX series are explosion-protected equipment
and serve as visual alarms in potentially explosive workplaces in Zones 1, 2, 21 and 22

Housing made of aluminium, therefore usable in all chemical and petrochemical plants
as well as offshore plants
High protection system and stable mechanical construction allow use under the
toughest operating conditions

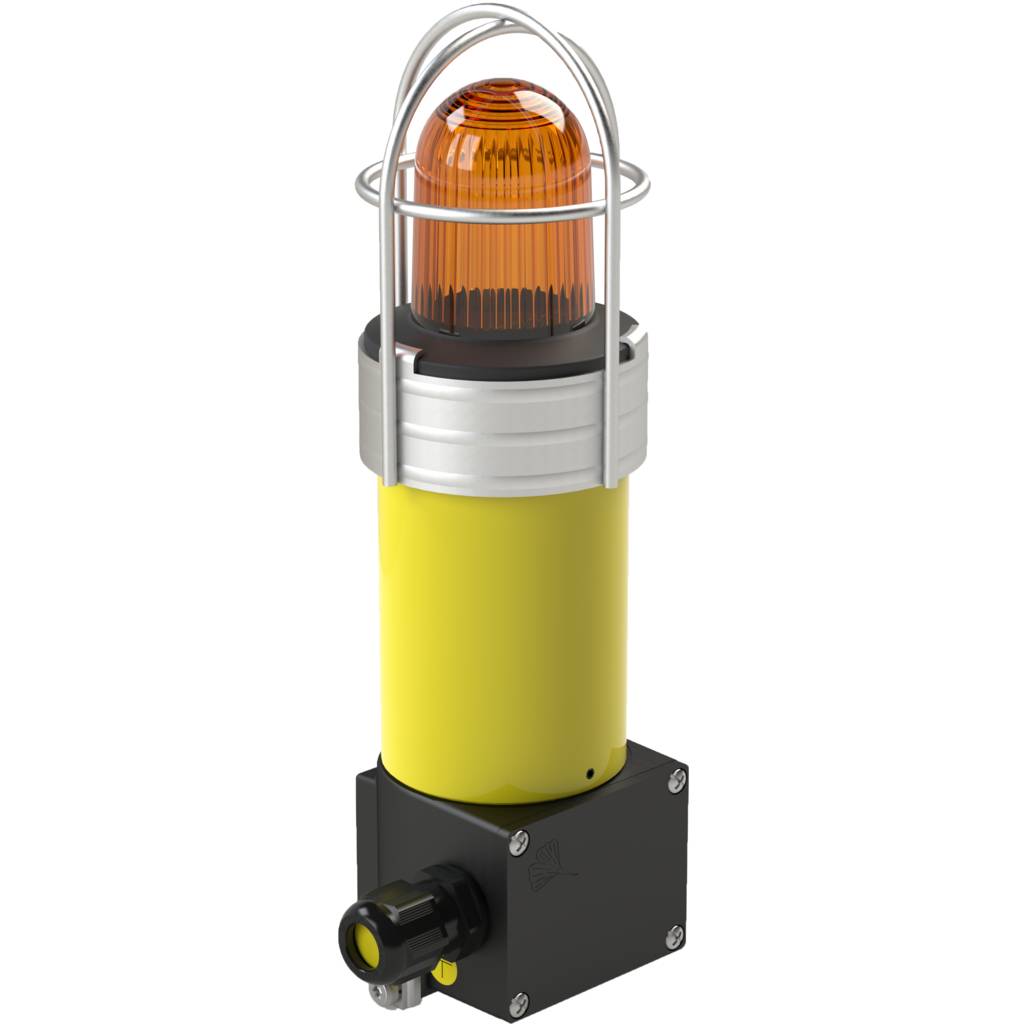

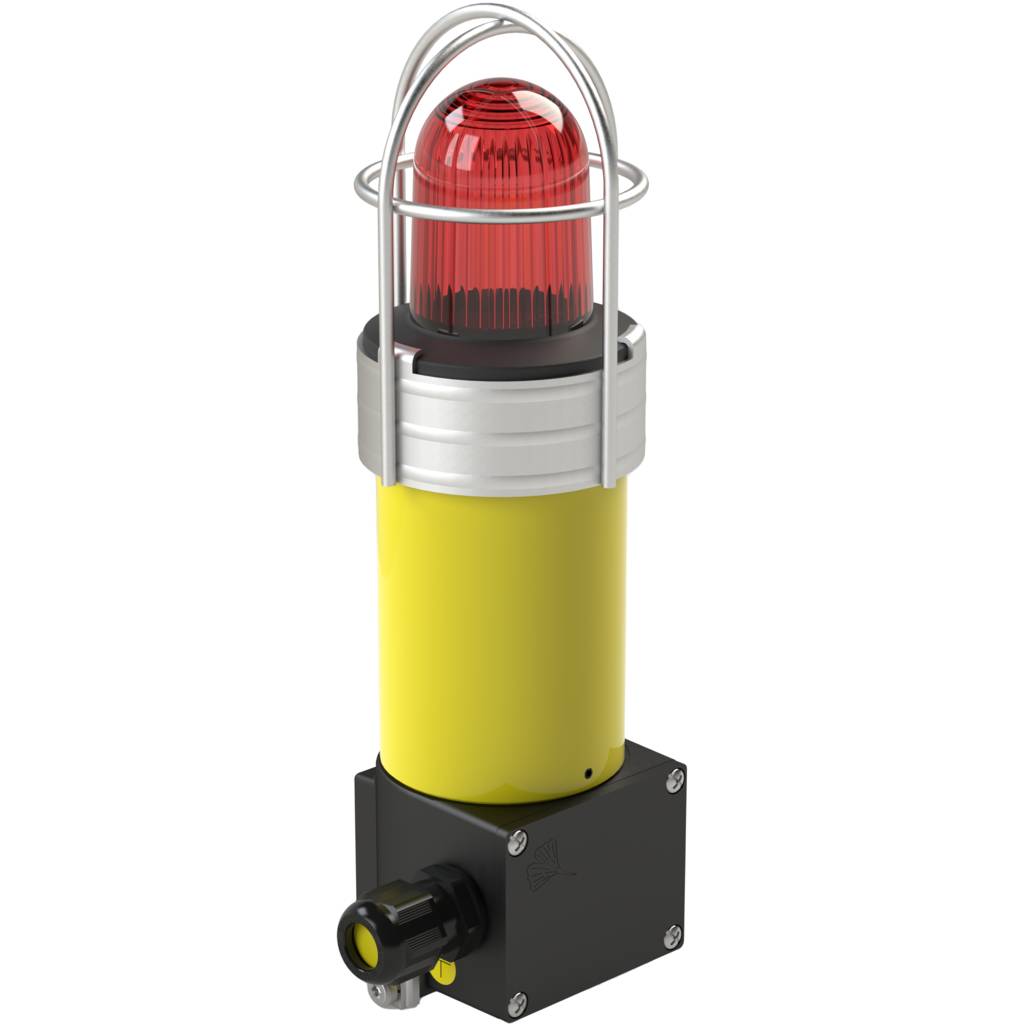

Various mounting brackets and a protective cage are available as accessories

Protection
system

Operating
temperature

GL conformity
(option)

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

Technical data

Electrical data	DC	CWB-ATEX
Rated voltage		60–80 V DC	12–48 V DC	24 V DC
Operating range		±10 %	±10 %	±20 %
Nominal current consumption		0.11–0.13 A	0.5–0.3 A	0.4 A

Electrical data	AC	CWB-ATEX
Rated voltage		230 V AC	110–127 V AC	24–42 V AC
Rated frequency		50/60 Hz	50/60 Hz	50/60 Hz
Operating range		±10 %	±10 %	±10 %
Nominal current consumption		0.08 A	0.11 A	0.5–0.3 A

Choose a lens in one of the following colours: clear, yellow, amber, red, green, blue

Further technical details and dimensions can be found in the download section on this page under product sheet

Downloads

Description	Language	Type	Size	Download
Product sheet	English		570 KB	│DOWNLOAD
Operating manual	English, German, French		870 KB	│DOWNLOAD
3D-Model (IGS)	English		170 KB	│DOWNLOAD
3D-Model (SAT)	English		140 KB	│DOWNLOAD
3D-Model (STEP)	English		97 KB	│DOWNLOAD
CE Declaration of conformity	English, German		48 KB	│DOWNLOAD
ATEX Approval	English, German		1.7 MB	│DOWNLOAD
Type Approval Certificate GL	English		99 KB	│DOWNLOAD

Ordering details

Ordering details		CWB-ATEX
Lens colour	Rated voltage	230 V AC	110–127 V AC	60–80 V DC	24–42 V AC / 12–48 V DC
Yellow	Article number	31006103000	31006133000	31006583000	31006903000
Amber	Article number	31006104000	31006134000	31006584000	31006904000
Red	Article number	31006105000	31006135000	31006585000	31006905000
