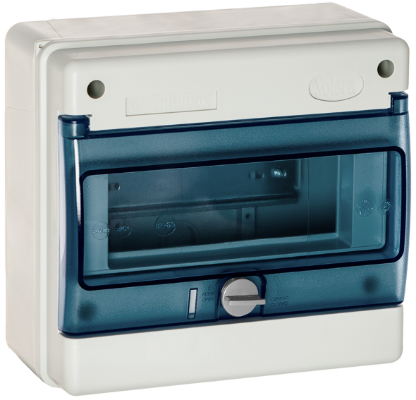

Ref. 1308BR1 Industrial distribution box of 8 modules. Industrial distribution box of 8 modules. IP65 IK08. External dimensions 215 x 200 x 115 mm. Common applications: Industrial environments (factories, warehouses, etc.)
│Price: 18,50 €
|
 Features |
| Enclosure type | Distribution | Ticket type | With centricity points |  |
|||
| Installation method | Surface | Sealable | Yes | ||||
| Use | Industrial | Lid closure system | Ultra-fast metal screw |
||||
| Location type | Exterior and interior | Door closing system | Handle | ||||
| No. Modules (18 mm) | 8 | Possibility of mounting strips |
Yes (included) |
||||
| Modules per row | 8 | Possibility of mounting padlock |
No | ||||
| Metallic DIN profile | Yes | Possibility of mounting key |
Yes (not included) |
||||
| Dimensions outside (mm) (width x height x depth) |
215x200x115 | Possibility of mounting DIN rail |
Yes (included) |
||||
| Case material | Insulation | ||||||
| Case color | Grey (RAL7035) | ||||||
| Cap color | Grey (RAL7035) | ||||||
| Door color | Fume |
 Technical data and regulation |
| Protection Degree (IP) | IP65 | CE marking | Yes | |||||||
| Protection Degree (IK) | IK08 | UK marking | Yes | |||||||
| Impact shock resistance | Strong | CMim marking | Yes | |||||||
| Insulation class | Class II | According to Regulations | UNE-EN 61439-1: 2021, UNE-EN 61439-3: 2012, UNE-EN 61439-4: 2013 |
|||||||
| Fire resistance (GWEPT) | 650 ºC | According to Regulations UNE/EN | UNE-EN 62208:2012 | |||||||
| Heat resistance (Ball pressure) | 70 ºC | According to REBT | Yes | |||||||
| UV resistance | Yes | According to European Directive 2014/35 / EU Low voltage directive |
Yes | |||||||
| Free of halogens | Yes | |||||||||
| Suitable for saline environments | Yes |
