5625GW
1 module
Dimensions: Ø68x46 mm
Corrugated pipe entry:
4xØ20 + 2xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 0,70 €
|
5625E
1 module (with membrane)
Dimensions: Ø68x46 mm
Corrugated pipe entry:
2xØ16-20 + 2xØ20-25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 1,30 €
|
5625EG
1 module
Dimensions: Ø68x46 mm
Corrugated pipe entry:
2xØ16-20 + 2xØ20-25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: -- €
|
5625A
1 module
Dimensions: Ø68x60 mm
Corrugated pipe entry:
4xØ20 + 2xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: -- €
|
5725EG
2 modules (with membrane)
Dimensions: 139x68x46 mm
Corrugated pipe entry:
4xØ16-20 + 2xØ20-25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: -- €
|
5725GW
2 modules
Dimensions: 139x68x46 mm
Corrugated pipe entry:
6xØ20-25 + 2xØ16
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 1,15 €
|
5725E
2 modules (with membrane)
Dimensions: 139x68x46 mm
Corrugated pipe entry:
2xØ16-20 + 4xØ20-25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 2,20 €
|
5825EG
3 modules (with membrane)
Dimensions: 139x68x46 mm
Corrugated pipe entry:
2xØ16-20 + 4xØ20-25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: -- €
|
5825GW
3 modules
Dimensions: 218x68x46 mm
Corrugated pipe entry:
4xØ20-25 + 4xØ20-16
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 1,80 €
|
5825E
3 modules (with membrane)
Dimensions: 210x68x46 mm
Corrugated pipe entry:
4xØ16-20 + 4xØ20-25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 3,20 €
|
5925GW
4 modules
Dimensions: 281x68x46 mm
Corrugated pipe entry:
8xØ20-25, 4xØ20, 4xØ16
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 3,20 €
|
5925
4 modules
Dimensions: 281x68x46 mm
Corrugated pipe entry:
12xØ20, 8xØ25, 4xØ16
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 4,90 €
|
5625
1 module
Dimensions: Ø68x46 mm
Corrugated pipe entry:
4xØ20 + 2xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 0,70 €
|
5725
2 modules
Dimensions: 140x68x46 mm
Corrugated pipe entry:
4xØ20 + 4xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 1,50 €
|
5825
3 modules
Dimensions: 218x68x46 mm
Corrugated pipe entry:
6xØ20, 4xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 2,10 €
|
5514GW
Dimensions: Ø100x46 mm
Corrugated pipe entry:
10xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 2,30 €
|

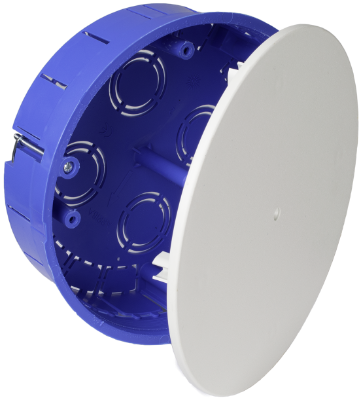

5515GW
Dimensions: Ø150x46 mm
Corrugated pipe entry:
14xØ25 + 4xØ32
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 3,15 €
|
5516GW
Dimensions: Ø150x46 mm
Corrugated pipe entry:
14xØ25 + 4xØ32
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 3,70 €
|
5362GW
Dimensions: 107x107x45 mm
Corrugated pipe entry: 12xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 1,95 €
|
5562GW
Dimensions: 107x107x45 mm
Corrugated pipe entry:
12xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 1,95 €
|
5363GW
Dimensions: 170x112x47 mm
Corrugated pipe entry: 16xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 2,70 €
|
5530GW
Dimensions: 300x150x75 mm
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 3,90 €
|
5530GWD
Dimensions: 300x150x75 mm
With DIN35 profile
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: -- €
|
5540GW
Dimensions: 390x150x60 mm
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: -- €
|
5563GW
Dimensions: 170x112x47 mm
Corrugated pipe entry: 16xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 2,80 €
|
5314GW
Dimensions: 188x148x50 mm
Corrugated pipe entry:
8xØ25 + 2xØ32 + 6xØ40
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: 4,30 €
|
324GW
Dimensions: 268x268x53 mm
Corrugated pipe entry:
12xØ25 + 12xØ30
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 5,30 €
|
5324
Dimensions: 268x268x53 mm
Corrugated pipe entry:
12xØ25 + 12xØ30
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: on demand
Conformity declaration
Data sheet
│Price: -- €
|
5506HGW
Dimensions: 300x500x60 mm
Corrugated pipe entry:
50xØ40
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 21 €
|
5362
Dimensions: 100x100x45 mm
Corrugated pipe entry:
12xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 3,30 €
|
5562
Dimensions: 100x100x45 mm
Corrugated pipe entry:
12xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 2,10 €
|
5363
Dimensions: 164x106x47 mm
Corrugated pipe entry:
16xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 2,80 €
|
5563
Dimensions: 164x106x47 mm
Corrugated pipe entry:
16xØ25
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 2,90 €
|
5314
Dimensions: 194x154x50 mm
Corrugated pipe entry:
8xØ25 + 2xØ32 + 6xØ40
Material: thermoplastic
Standard: EN 60670-1; EN60670-22
Available: yes
Conformity declaration
Data sheet
│Price: 4 €
|
