PY L-M-M

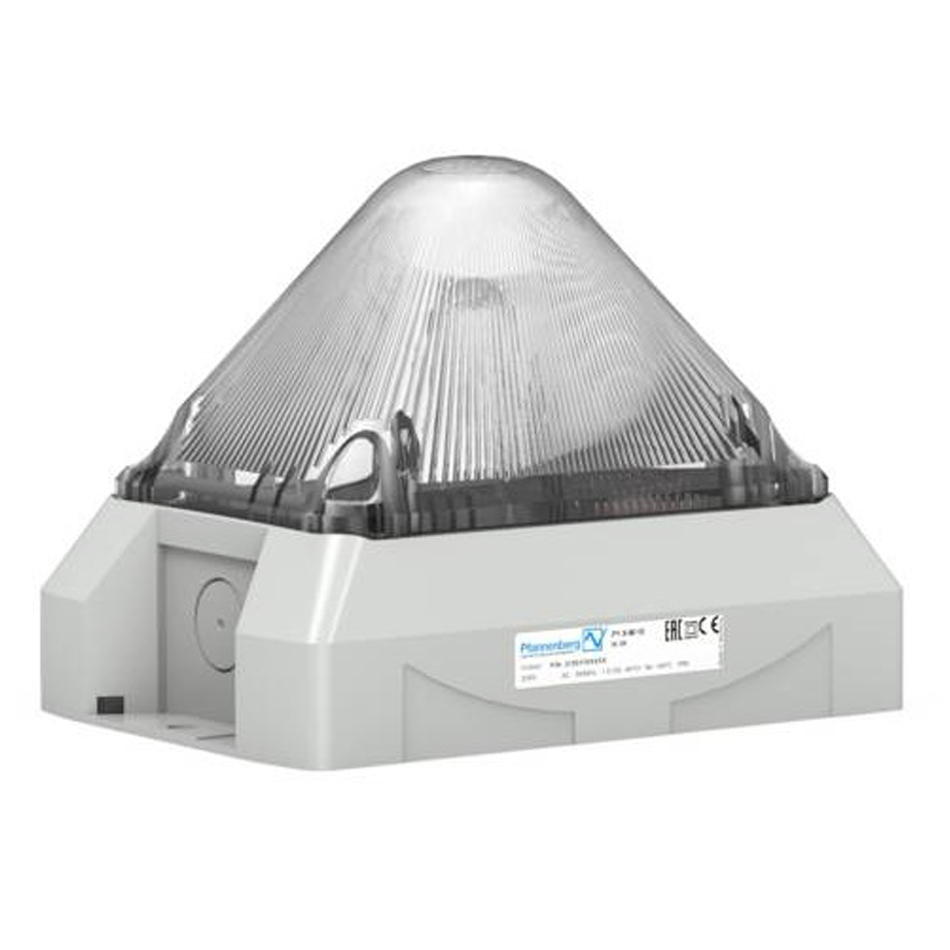

Function-monitored LED light for safety-critical applications

Function-monitored - The function-monitored PY L-M-M ensures more safety in sensitive applications where a signal must be sent to an external safety system, operating station or control centre in the event of a malfunction
Selectable signaling modes - No matter which signaling mode is required - you are able to choose the one that fits to your needs

continuous steady on light (permanent warning or indication)
blinking light (highly efficient for permanent warning)
flashing light (higher perceptibility in alarm conditions)

Selectable blink & flash frequencies - Adaptable to all your applications - select the frequency your gadget requires and boost the perceptibility
Multi-voltage-power supply - Plug and play - made to connect with different voltages. No need to stock various units - PYRA® LED adapts to most machines and applications no matter the voltage!
Panel mount installation - Smart, modern and 360° visible - fully integrable into the design of your machine and equipment! The pyramid-shaped lens has ideal radiation characteristics and ensures all-round visibility

Warranty 10 years	Protection system	NEMA 4/4X	Impact-proof housing	Brightness adjustable
Operating temperature	EAC conformity	UL conformity	Connector (option)

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

PFANNENBERG 3D-COVERAGE

Size of visual coverage in meter (A x B x C)

	INDICATE	WARNING	ALERT
Red	40,5 x 26,6 x 31,5	18 x 11,8 x 14	9 x 5,9 x 7
Yellow	36 x 41 x 42,3	16 x 18,2 x 18,8	8 x 9,1 x 9,4
Green	39,6 x 26,1 x 32,4	17,6 x 11,6 x 14,4	8,8 x 5,8 x 7,2
Amber	36 x 24,8 x 29,7	16 x 11 x 13,2	8 x 5,5 x 6,6
Blue	18 x 11,3 x 13,5	8 x 5 x 6	4 x 2,5 x 3
Clear	38,7 x 43,2 x 44,1	17,2 x 19,2 x 19,6	8,6 x 9,6 x 9,8

Technical data

Electrical data	PY L-M-M
Rated voltage	115/230 V AC	120 V DC	24 V AC	12/48 V DC
Rated frequency	50/60 Hz	-	50/60 Hz	-
Operating range	95–265 V	108–132 V	21.6-26.4 V	10–60 V
Nominal current consumption	18 mA @ 230 V AC	18 mA @ 120 V DC	80 mA @ 24 V AC	63 mA @ 24 V DC

Further technical details and dimensions can be found in the download section on this page under product sheet

Downloads

Description	Language	Type	Size	Download
CE eclaration of conformity	English, German		35 KB	│DOWNLOAD
UKCA Declaration of conformity	English		26 KB	│DOWNLOAD
Supplement sheet PY L-M-M	English, German, French		63 KB	│DOWNLOAD
Quick guide PY L-M (A)	English, German, French, Italian, Russian		1.3 MB	│DOWNLOAD
Operating manual PY L-M (A)	English, German, French, Italian, Russian		2.4 MB	│DOWNLOAD
Product sheet	English		360 KB	│DOWNLOAD
3D-Models (IGS, SAT, STEP)	English		3.3 MB	│DOWNLOAD
EPLAN macro EDZ	English		630 KB	│DOWNLOAD
Pin assignment of optional M12 connector	English, German		320 KB	│DOWNLOAD
UL certificate	English		190 KB	│DOWNLOAD
EAC certificate	Russian		300 KB	│DOWNLOAD

Ordering details

Ordering details			PY L-M-M
Light/lens colour	Base colour	Rated voltage	15/230 V AC; 120 V DC	12/48 V DC
Yellow	Grey	Article number	21553643004	21553813004
Amber	Grey	Article number	21553644004	21553814004
Red	Grey	Article number	21553645004	21553815004
Green	Grey	Article number	21553646004	21553816004

Other article numbers on request. Available lens colours are red, amber, yellow, green, blue and clear. Available standard base colours are grey and red.
