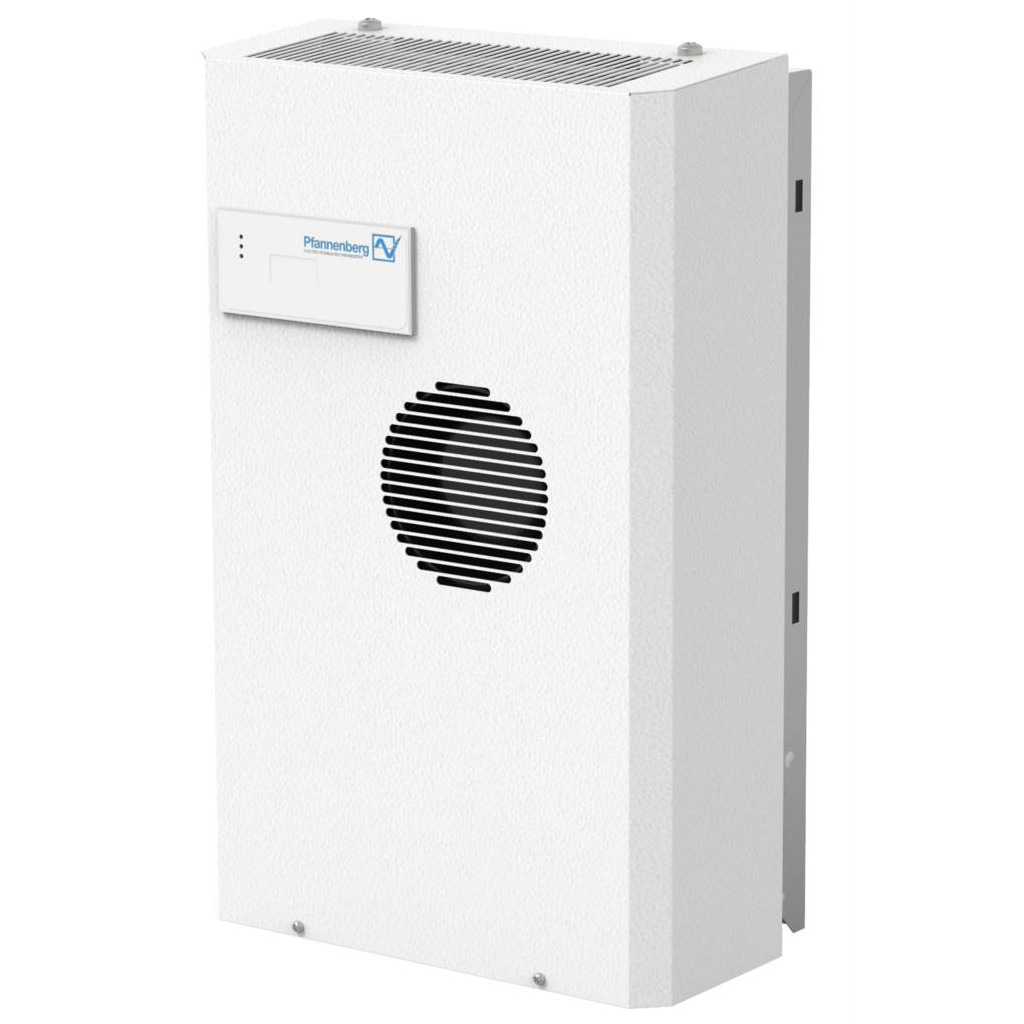

DTI/DTS 9041

Cooling units 870 W

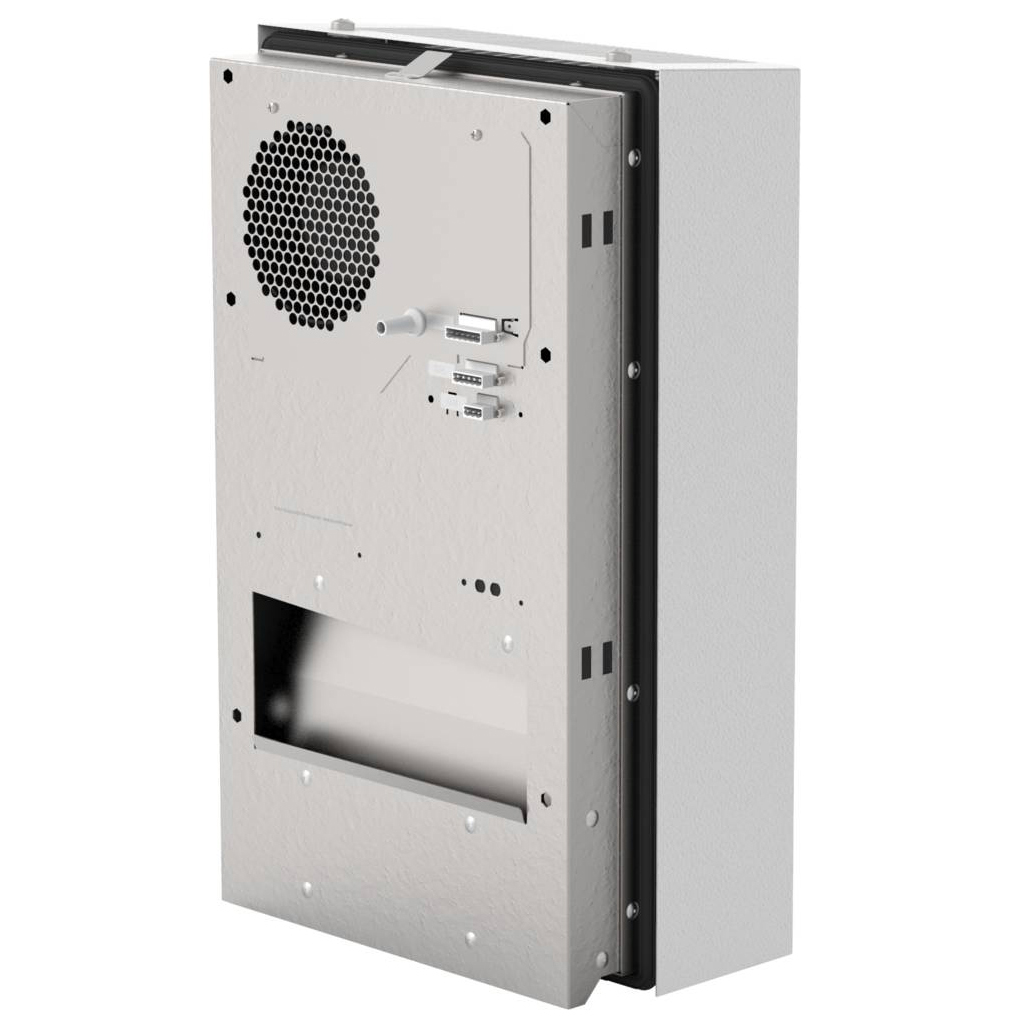

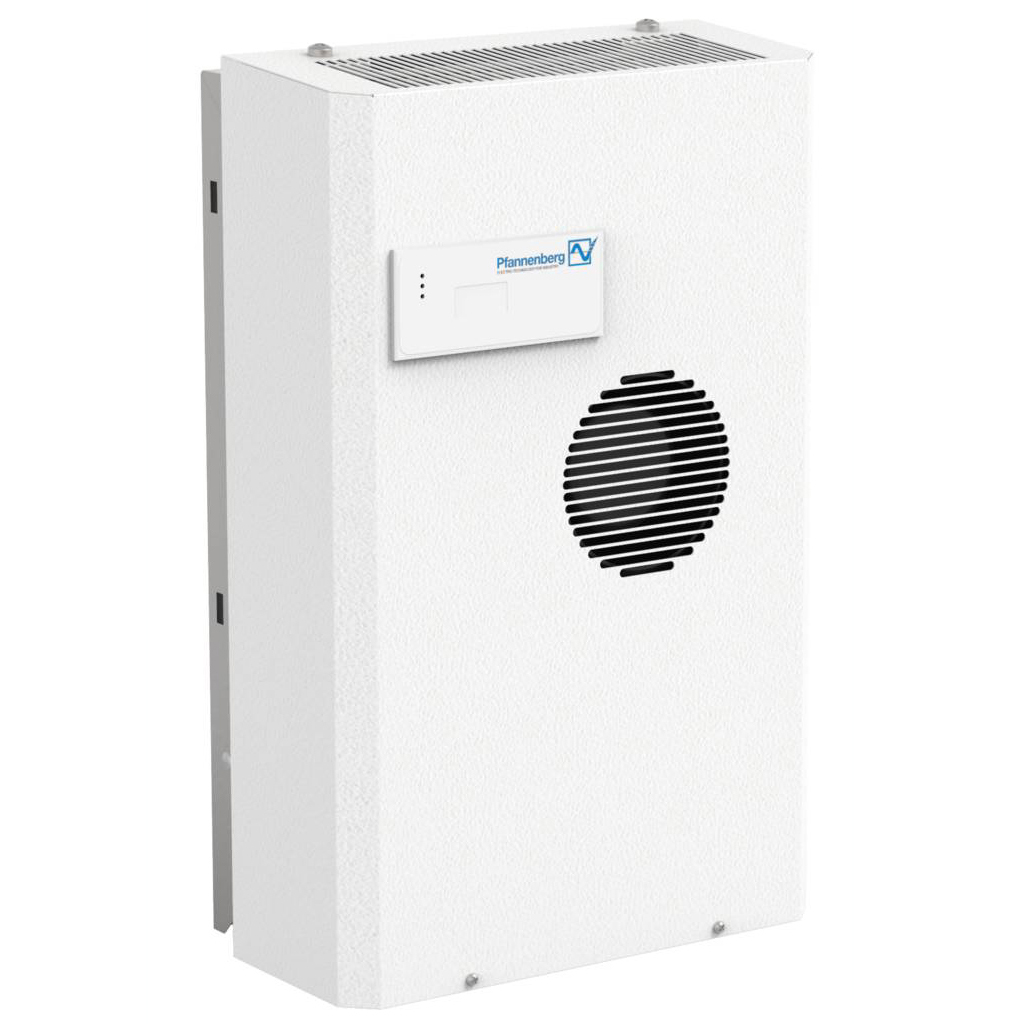

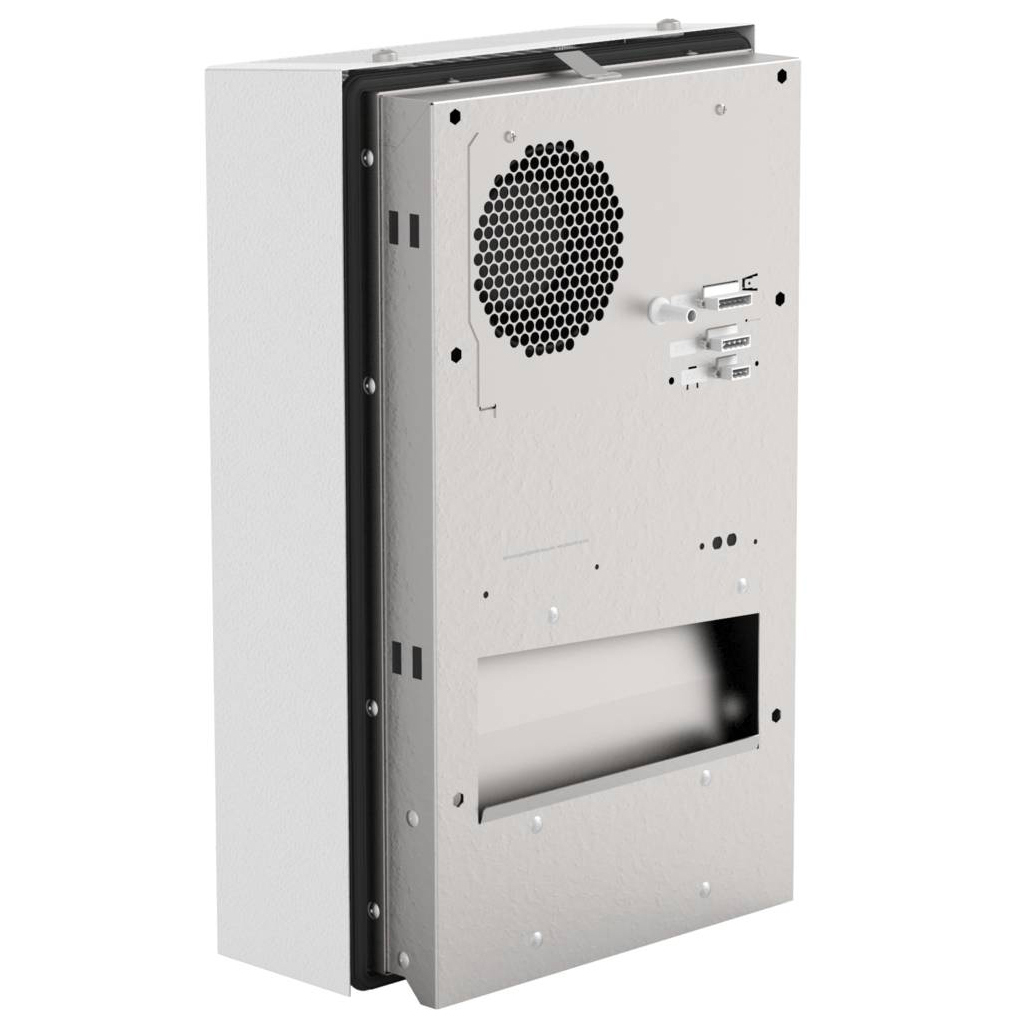

DTI: for partially recessed mounting in the door or side

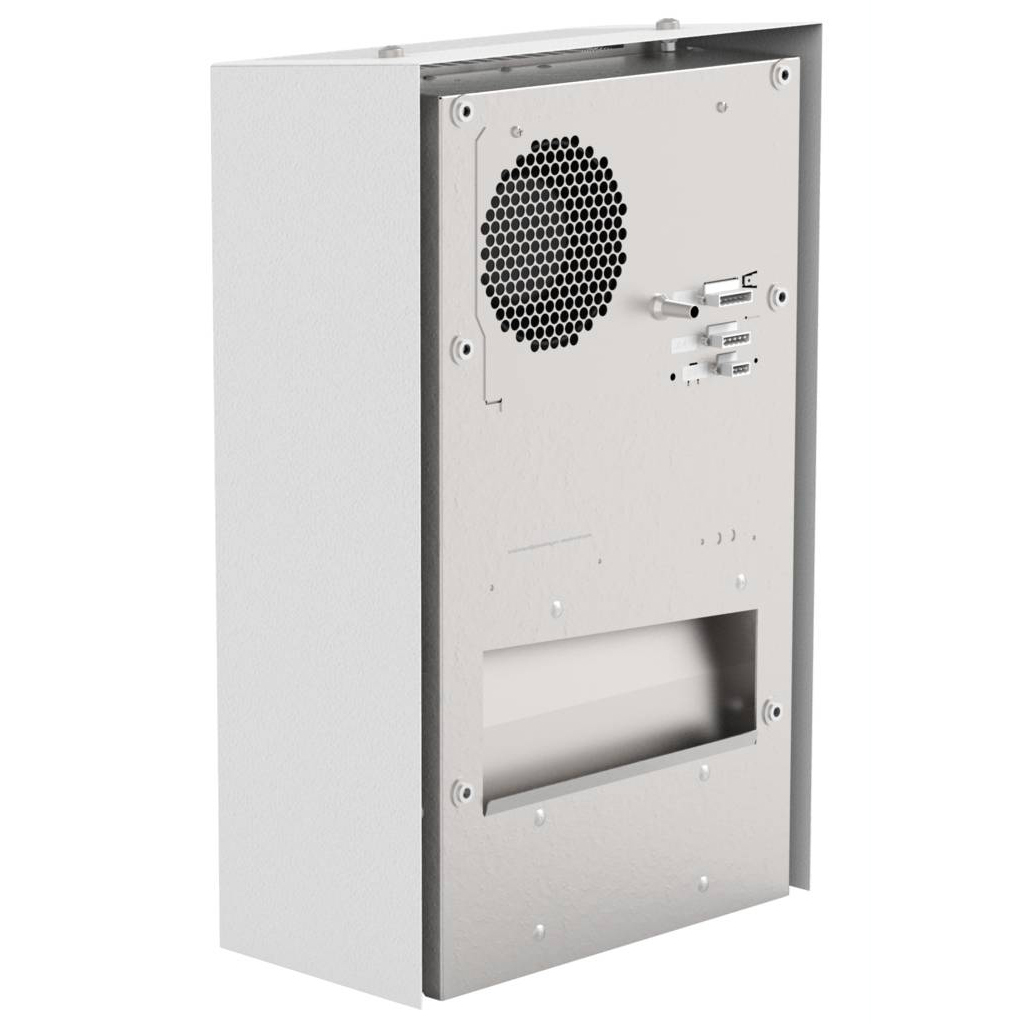

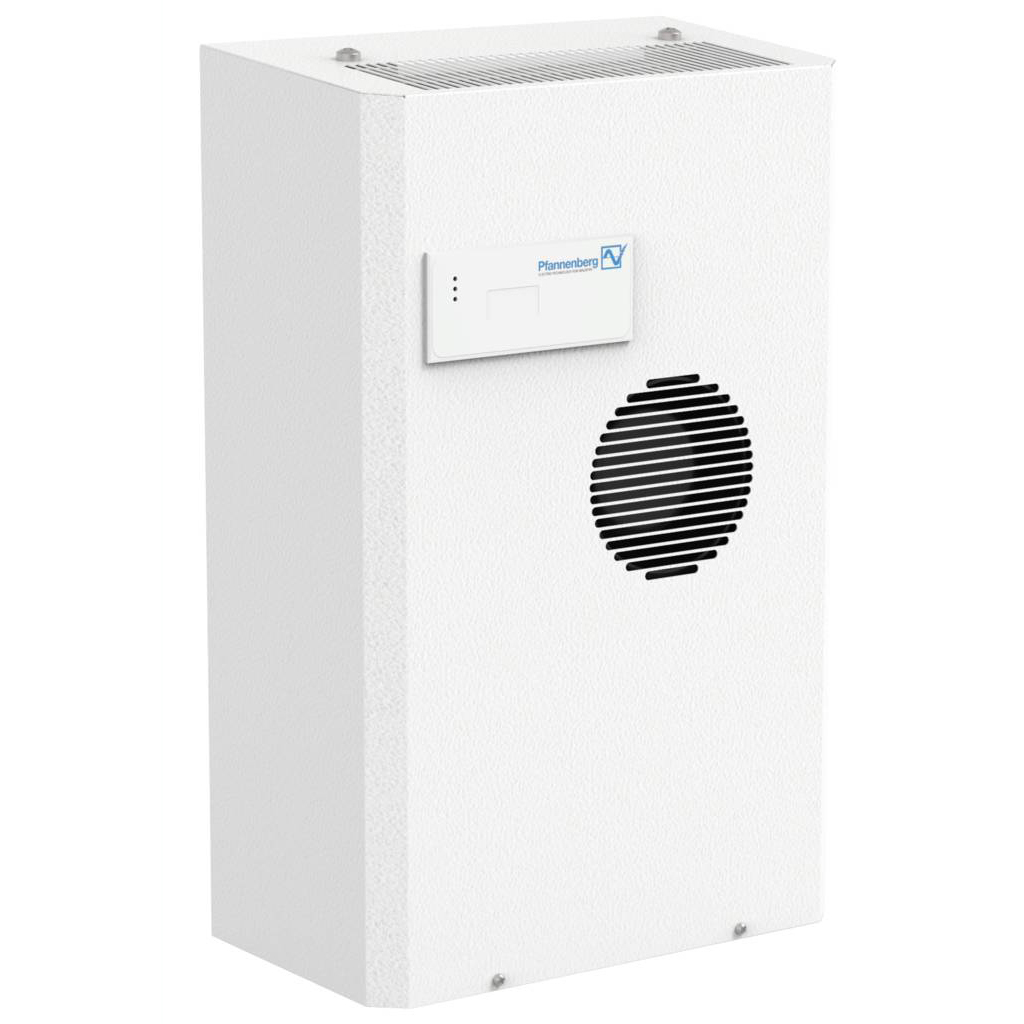

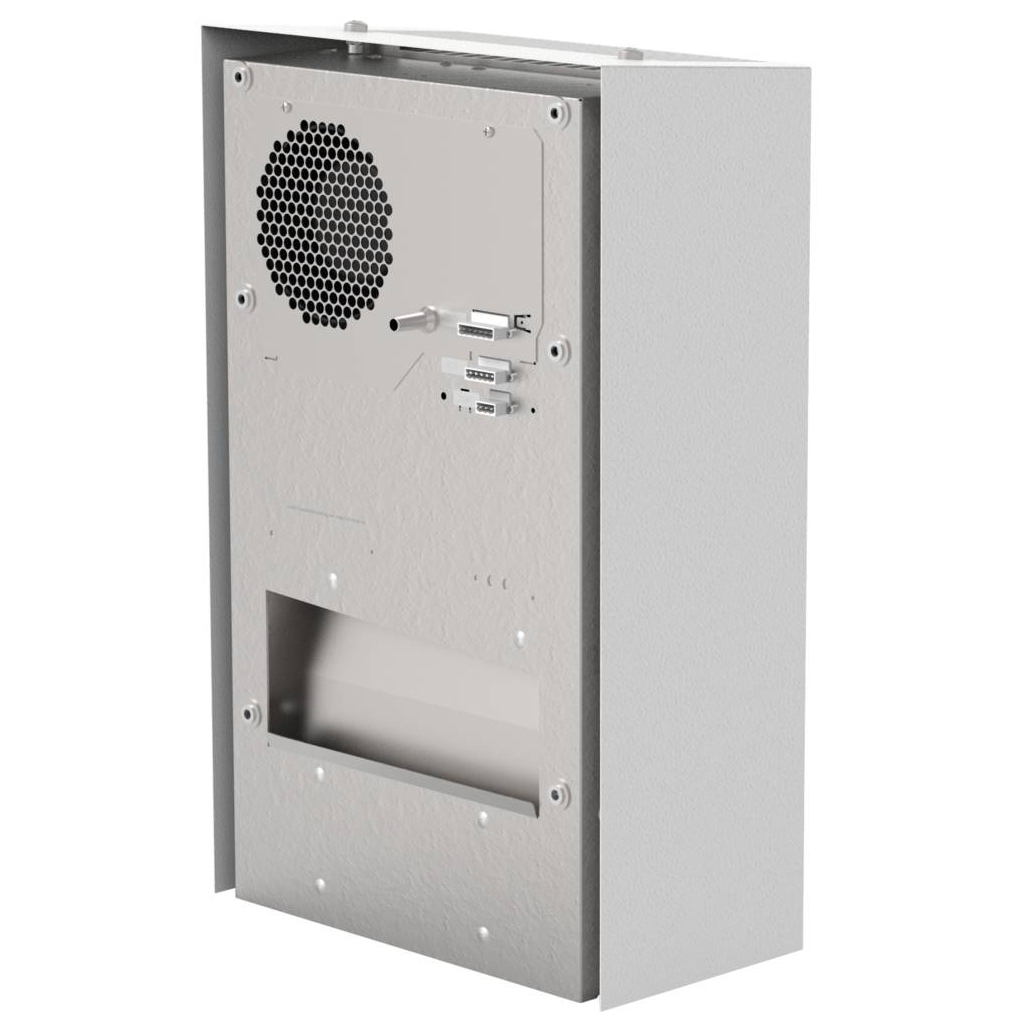

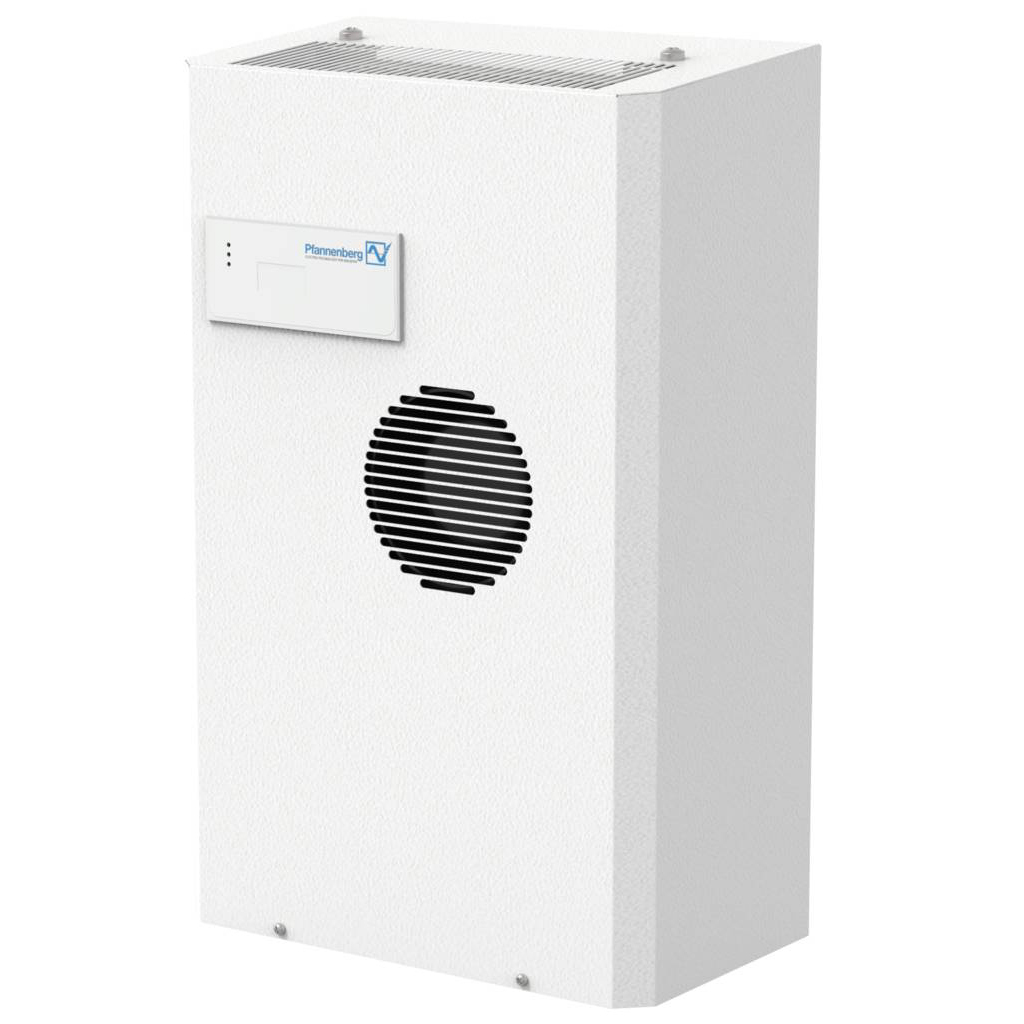

DTS: for outer mounting on the door or side
Robust: steel cover, easily paintable
Suitable for use with a door width of 400 mm within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
Large distance between intake and exhaust vents, safe circulation
Integrated fault and door contact
DTI variants: fast mounting without drilling and adhering the electrical enclosure seal

Partially recessed
mounting (DTI)

Side
mounting (DTS)

Protection
system

Large distance
in / out

Tool-less
mounting (DTI)

UL
approved

EAC
Conformity

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

Technical data

Data		DTI/DTS 9041
Rated voltage ± 10%		AC 50/60 Hz		AC 60 Hz
		400 V 2~¹	230 V	115 V
Cooling capacity according to EN 14511	A35/A35	810 W	870 W	790 W
	A35/A50	483 W	580 W	590 W
Ambient temperature		+15 … +55 °C / +59 … +131 °F
Degrees of protection according to EN 60529	IP 54	towards the electrical enclosure if used as intended by the manufacturer

¹ suitable for various supply voltages (see technical specific data sheet)

Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description	Language	Type	Size	Download
Declaration of Conformity DTx 9xx1	English, German		55 KB	│DOWNLOAD
Declaration of Conformity UKCA	English		37 KB	│DOWNLOAD
Product sheet	English		430 KB	│DOWNLOAD
Operating manual DTx 9x41	English, German, French, Italian, Spanish, Dutch, Swedish		1.9 MB	│DOWNLOAD
Manual Controller	English, German, French, Italian, Spanish, Dutch, Swedish		4.6 MB	│DOWNLOAD
Supplement Test mode + MM (MC)	English, German, French, Italian, Spanish, Russian		250 KB	│DOWNLOAD
Supplement DTX 9041 230V SC	English, German, French		470 KB	│DOWNLOAD
Supplement DTX 9041 115V SC	English, German, French		470 KB	│DOWNLOAD
Supplement DTX 9041 400V 2~ SC	English, German, French		580 KB	│DOWNLOAD
Supplement operating device	English, German, French, Italian, Spanish, Dutch, Swedish		1.2 MB	│DOWNLOAD
Supplement DTX 9041 230V CC/MC	English, German, French		460 KB	│DOWNLOAD
Supplement DTx9041 400V 2~ CC/MC	English, German, French		500 KB	│DOWNLOAD
Supplement DTx 9041 115V CC/MC	English, German, French		460 KB	│DOWNLOAD
Data sheet 115V	English, German, French		340 KB	│DOWNLOAD
Data sheet 230V	English, German, French		400 KB	│DOWNLOAD
Data sheet 400V	English, German, French		410 KB	│DOWNLOAD
3D-model DTS (STEP)	English		1.3 MB	│DOWNLOAD
3D-model DTS 400V (STEP)	English		8.2 MB	│DOWNLOAD
3D-model DTI (STEP)	English		4.4 MB	│DOWNLOAD
3D-model DTI 400V (STEP)	English		6.9 MB	│DOWNLOAD
Cut-out DTI 9041	English, German		79 KB	│DOWNLOAD
Cut-out DTS 9041	English, German		150 KB	│DOWNLOAD
UL recognized certificate	English		530 KB	│DOWNLOAD
EAC certificate	Russian		1.6 MB	│DOWNLOAD

Ordering details

Ordering details		DTI 9041
Type	Rated voltage	400 V AC	230 V AC	115 V AC
Standard Controller	Article number	13299049055	13299041055	13299044055
Multi Controller	Article number	13299079055	13299071055	13299074055

Ordering details		DTS 9041
Type	Rated voltage	400 V AC	230 V AC	115 V AC
Standard Controller	Article number	13249049055	13249041055	13249044055
Multi Controller	Article number	13249079055	13249071055	13249071055

Article numbers for other types on request

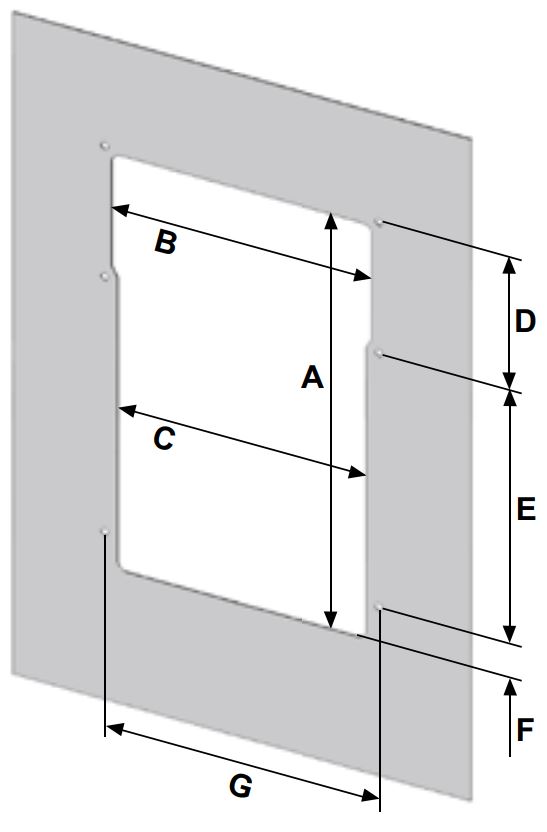

DIMENSIONS DTS 9041			DIMENSIONS DTI 9041

	A	472 mm		K	577 mm
	B	282 мм		L	350 mm
	C	272 mm		X	380 mm
	D	150 mm		Y	599 mm
	E	288 mm		Z1	171 mm
	F	40 mm		Z2	60 mm
	G	300 mm
	X	380 mm
	Y	604 mm
	Z	230 mm
