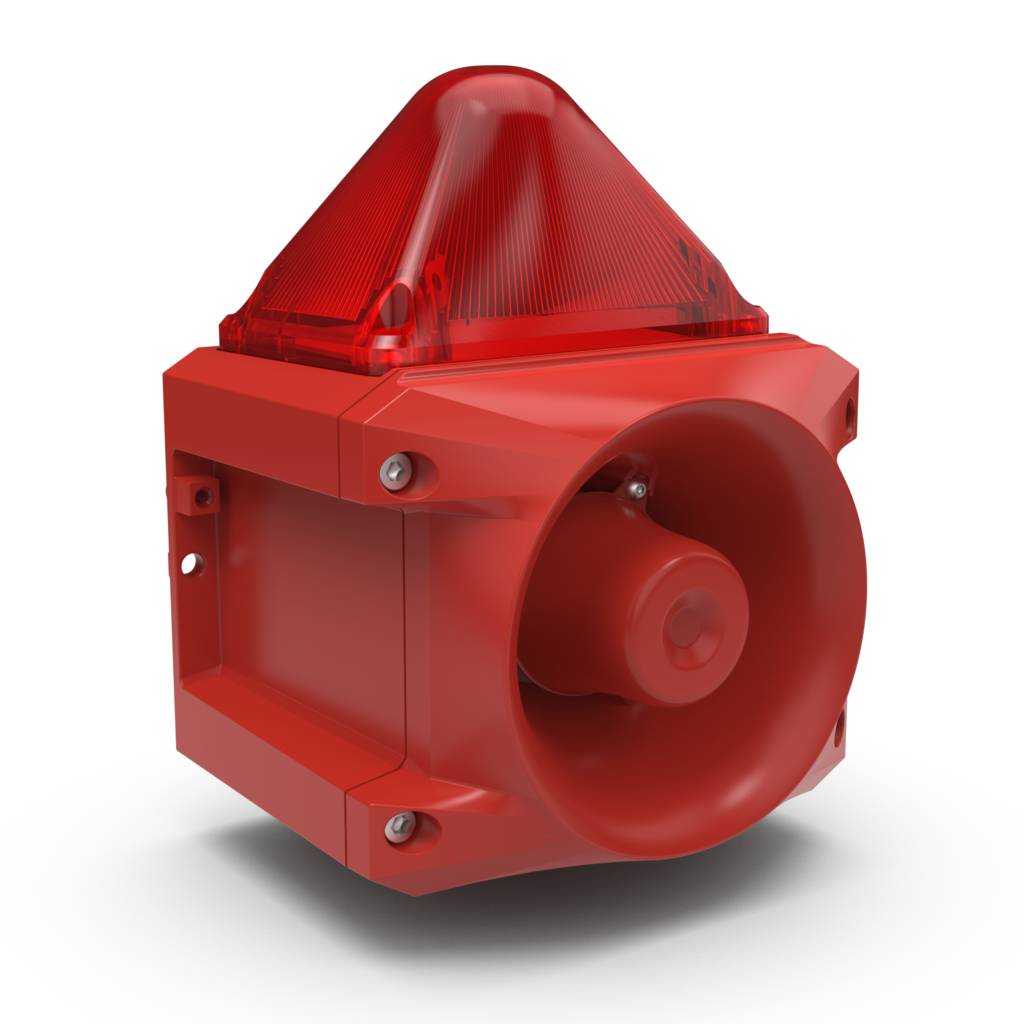

PRO X 10-05

Protect flashing sounders max. 116 dB(A) / 5 J

Excellent robustness – Cast aluminium housing guarantees long lasting use in tough applications
Exceptional visibility – High performance xenon flash light for a reliable alarming
Outstanding perceptibility – Ideal radiation characteristics and high penetration of acoustical obstacles reduce the required number of devices
Selectable tone – 80 different tones, 3 additional tones externally selectable
Selectable sound pressure – Reduction of sound pressure level up to 30 dB, internally or externally selectable
Pre- & main alarm – Preventing shock reactions by pre-alarming due to reduced sound pressure level
Safe & easy handling – Designed with unlosable seal and screws to significantly shorten wiring and installation times

Acoustic penetration	Protection system	Impact-proof housing	Operating temperature	10 years warranty
UL Approval (pending)	EAC conformity	NEMA 4/4X	Ext. sound reduction

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

Size of acoustical coverage in meter (A x B x C)

80 dB (A)	85 dB (A)	90 dB (A)
51 x 49 x 24	29 x 27 x 14	16 x 15 x 8

Size of visual coverage in meter (A x B x C)

	INDICATE	WARNING	ALERT
Red	25 x 45 x 41	11 x 20 x 18	6 x 10 x 9
Yellow	40 x 72 x 70	18 x 32 x 31	9 x 16 x 16
Green	33 x 58 x 52	15 x 26 x 23	7 x 13 x 12
Amber	32 x 57 x 52	14 x 25 x 23	7 x 13 x 12
Blue	22 x 38 x 35	10 x 17 x 16	5 x 8 x 8
Clear	41 x 73 x 68	18 x 33 x 30	9 x 16 x 15

Coverage area with DIN tone and required sound levels.

Technical data

Electrical data	PRO X 10-05
Rated voltage	230 V AC	115 V AC	24 V AC	12 - 48 V DC
Rated frequency	50/60 Hz	50/60 Hz	50/60 Hz
Operating range	187–253 V	90-135 V	18-30 V	10–57 V
Current consumption sounder (max)	95 mA	145 mA	700 mA	400 mA @ 24 V DC
Current consumption light (max)	95 mA	140 mA	600 mA	280 mA @ 24 V DC

Further technical details can be found in the Download section on this page

Downloads

Description	Language	Type	Size	Download
Declaration of Conformity CE	English, German		39 KB	│DOWNLOAD
Declaration of Conformity UKCA	English		28 KB	│DOWNLOAD
Operating manual PRO X 10	English, German, French, Italian, Portuguese, Russian		8.6 MB	│DOWNLOAD
Quick Guide PRO X 10	English, German, French, Italian, Portuguese, Russian		690 KB	│DOWNLOAD
Product Sheet	English		3.8 MB	│DOWNLOAD
3D-Model (STEP-IGS-SAT)	English		33 MB	│DOWNLOAD
EAC Certificate	Russian		300 KB	│DOWNLOAD

Ordering details

Ordering details		PRO X 10-05
Rated voltage		230 V AC	115 V AC	24 V AC	12 - 48 V DC
Red light	Article number	23152105000	23152155000	on request	23152635000
Amber light	Article number	23152104000	23152154000	on request	23152634000
Yellow light	Article number	23152103000	23152153000	on request	23152633000

Video

Audio Samples

Audio-Number	Description	Graphic	sss	Audio-Number	Description	Graphic
2 : EN54-3	Sawtooth DIN tone 33404-3 Germany (emergency signal) PFEER PTAP			77	Interrupted tone
9	Slow whoop Fire alarm, UK BS 5839-1			82	Interrupted tone PFEER (general alarm), UK BS 5839-1 (back-up alarm)
11	Interrupted tone (fast)			83	Interrupted tone PFEER (general alarm)
13	Interrupted tone			88	Interrupted tone
15	Slow whoop Evacuation alarm Netherlands NEN 2575			90	Interrupted tone
16	Slow whoop Australian evacuation alarm AS 2220			91	Interrupted tone
18	Slow whoop NFPA			92	Interrupted tone
22	Whoop Australian alaert AS 1670, ISO 8201			93	Interrupted tone (fast) Horn
23	Siren			97	Interrupted tone
24	Siren			98	Interrupted tone Sweden SS 031711 (emergency signal)
25	Siren			100	Interrupted tone Industrial alarm Germany
26	Siren Industrial alarm Germany - Hoechst			101	Interrupted tone Sweden SS 031711 (important message (pre mess))
27	Sweeping			102	Interrupted tone Sweden SS 031711 (local warning)
29	Sweeping Fast			103	Interrupted tone Sweden SS 031711 (air raid warning)
30	Sweeping			104 : EN54-3	Interrupted tone Sweden SS 031711 (emergency signal)
31	Sweeping France NF C 48-265			107	Interrupted tone Germany KTA 3901 (evacuation alarm)
33	Sweeping (medium) UK BS 5839-1			109	Interrupted tone Australia AS 2220, AS 1610, AS 1670
34	Sweeping Fast			110	Interrupted tone (Fast variable), bell
35	Sweeping (fast) UK BS 5839-1			111	Interrupted tone ISO 8201 (emergency evacuation signal), USA (evacuation alarm)
36	Sweeping			112	Interrupted tone ISO 8201 (emergency evacuation signal)
43	Sweeping			113	Interrupted tone ISO 8201 (emergency evacuation signal), sweeping
44	Sweeping IMO 3d, Germany KTA 3901 evacuation alarm			115	Interrupted tone IMO (telephone call)
45	Sweeping			116	Interrupted tone IMO (leave ship)
46	Sweeping General alarm Finland			117	Interrupted tone IMO SOLAS lll/50 + SOLAS lll/6.4 (general alarm)
52	Continuous tone			122	Alternating tone
53	Continuous tone			123	Alternating tone
54	Continuous tone Finland (all-clear signal)			124	Alternating tone Singapore
55	Continuous tone PFEER gasalarm			125	Alternating tone
56	Continuous tone			128	Alternating tone
57	Continuous tone UK BS 5839-1			130	Alternating tone UK BS5839-1 (fire alarm)
59	Continuous tone			131 : EN54-3	Alternating tone UK BS 5839-1 (fire alarm, railway crossing)
60 : EN54-3	Continuous tone			135	Alternating tone UK BS 5839-1 (fire alarm, increased urgency - railway crossing)
61	Continuous tone			142	Alternating tone
63	Continuous tone			143	Alternating tone Industrial alarm Germany
65	Continuous tone Sweden SS 031711 (all-clear signal)			144	Alternating tone
66	Continuous tone			146 : EN54-3	Alternating tone France NFS 32-001 (fire alarm)
67	Continuous tone Germany KTA 3901 (all-clear signal)			147	Alternating tone Sweden SS031711 (turn out)
68	Continuous tone			148	Alternating tone Sweden SS031711 (turn out)
69	Continuous tone			152	Alternating tone (Two tone chime)
71	Continuous tone
