PWI/PWS 6302 3kW

εCOOL air/water heat exchangers 3000 W

PWI: for partially recessed mounting in the door or side
PWS: for outer mounting on the door or side
Robust: steel cover, easily paintable
Offers the highest degree of safety and energy efficiency
Cut-out compatible with εCOOL system e. g. for air/air heat exchangers and cooling units
Easy mounting with click and fit system for partially recessed version PWI
Maintenance-free
Integrated thermostat and solenoid valve for temperature control
Integrated temperature monitoring with alarm contact
AVAILABLE VARIANT: water connections on top (PWx 6000T)

Partially recessed mounting (PWI)	Side mounting (PWS)	Protection system	Top EER / energy saving	Temperature alarm
Temperature control	Large distance in / out	Cut-out compatible DT \| A/A units	Tool-less mounting (PWI)

Data		PWI/PWS 6302
Rated voltage ± 10%		AC 50/60 Hz		AC 60 Hz
		400 V	230 V	115 V
Cooling capacity at 400 l/h	W10/A35	3000 W
Ambient temperature		+1 … +70 °C / +34 … +158 °F
Water inlet temperature		> +2 … +35 °C / +34 … +95 °F
Degrees of protection according to EN 60529	IP 55	towards the electrical enclosure if used as intended by the manufacturer

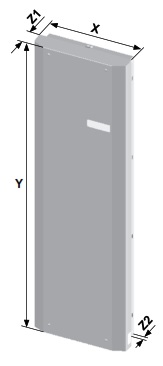

Further technical details and dimensions can be found in the download section on this page under product sheet

Description	Language	Type	Size	Download
Declaration of conformity	English, Italian		240 KB	│DOWNLOAD
Operating manual PWx 6302 400/460V	English, German, French, Italian, Spanish, Russian		2.9 MB	│DOWNLOAD
Operating manual PWx 6302 115/230V	English, German, French, Italian, Spanish, Russian		3.8 MB	│DOWNLOAD
Operating manual PWx 6302T 230V	English, German, French, Italian, Spanish, Russian		3.0 MB	│DOWNLOAD
Short operating manual	English, German, French, Italian, Spanish		1.0 MB	│DOWNLOAD
Product sheet	English		250 KB	│DOWNLOAD
Water connections on top (PWx6000T) with connection kit	English		4.1 MB	│DOWNLOAD
3D-model PWI (STEP)	English		1.6 MB	│DOWNLOAD
3D-model PWS (STEP)	English		3.4 MB	│DOWNLOAD
Cut-out PWI (DXF)	English		7.0 KB	│DOWNLOAD
Cut-out PWS (DXF)	English		11 KB	│DOWNLOAD
UL recognized certificate	English		390 KB	│DOWNLOAD
EAC certificate	Russian		1.7 MB	│DOWNLOAD
