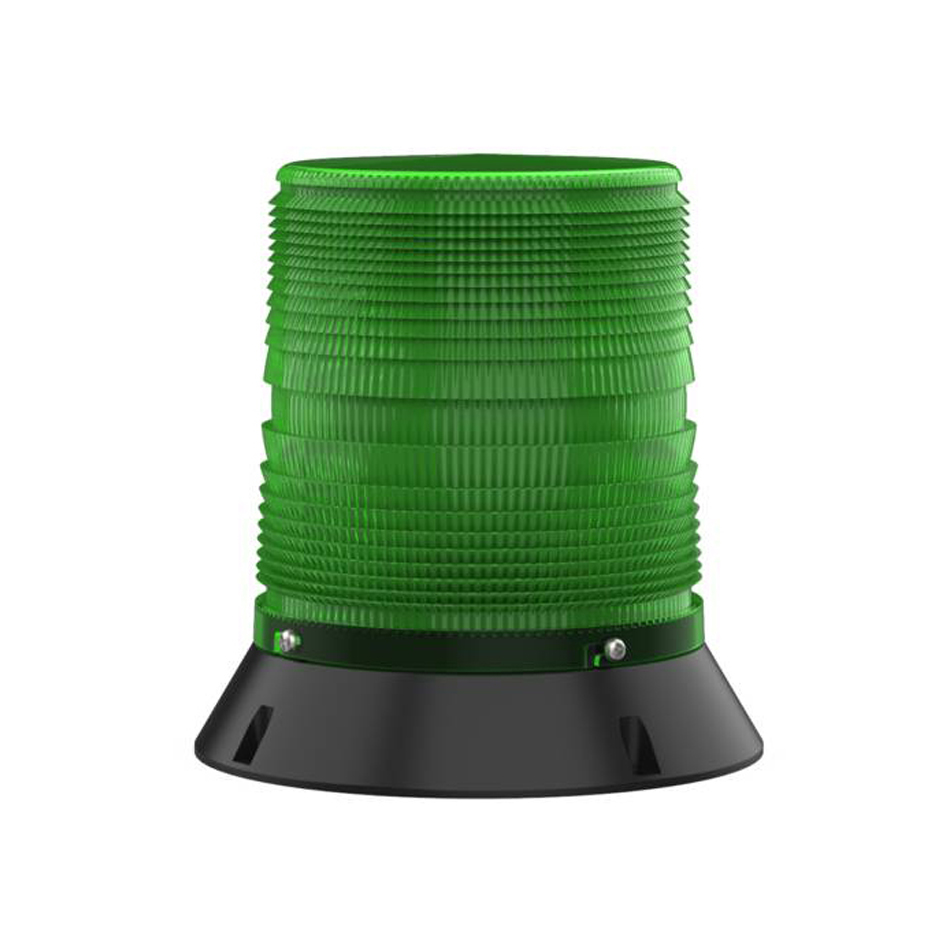

PMF-LED Flex
| |
LED multifunction light Multifunction light with the brightest LED technology
|
|
|
|
|
|
|
PFANNENBERG 3D-COVERAGE
Size of visual coverage in meter (A x B x C)
| INDICATE | WARNING | ALERT |  |
|
 Red |
9 x 42,8 x 42,8 | 4 x 19 x 19 | 2 x 9,5 x 9,5 | |
 Green |
6,8 x 41,9 x 41,9 | 3 x 18,6 x 18,6 | 1,5 x 9,3 x 9,3 | |
 Amber |
11,3 x 54 x 54 | 5 x 24 x 24 | 2,5 x 12 x 12 | |
 Blue |
6,8 x 39,6 x 39,6 | 3 x 17,6 x 17,6 | 1,5 x 8,8 x 8,8 | |
 Clear |
11,3 x 62,6 x 62,6 | 5 x 27,8 x 27,8 | 2,5 x 13,9 x 13,9 |
Technical data
| Electrical data | PMF-LED Flex | |
| Rated voltage | 115/230 V AC | 230 V DC |
| Rated frequency | 50/60 Hz | - |
| Operating range | 95–253 V | 100–350 V |
| Nominal current consumption in continuous light mode | 90/60 mA | 55 mA |
Further technical details and dimensions can be found in the download section on this page under product sheet
Downloads
| Description | Language | Type | Size | Download |
| CE Declaration of conformity | English, German |  |
35 KB | │DOWNLOAD |
| UKCA Declaration of conformity | English | |
26 KB | │DOWNLOAD |
| Product sheet | English | |
440 KB | │DOWNLOAD |
| Operating manual PMF_LED Flex | English, German, French | |
640 KB | │DOWNLOAD |
| 3D-Model Bracket (IGS) | English |  |
320 KB | │DOWNLOAD |
| 3D-Model Bracket (SAT) | English | |
260 KB | │DOWNLOAD |
| 3D-Model Bracket (STEP) | English | |
180 KB | │DOWNLOAD |
| 3D-Model Direct (IGS) | English | |
450 KB | │DOWNLOAD |
| 3D-Model Direct (SAT) | English | |
370 KB | │DOWNLOAD |
| 3D-Model Direct (STEP) | English | |
240 KB | │DOWNLOAD |
| EPLAN macro EDZ | English | |
740 KB | │DOWNLOAD |
| EAC certificate | Russian | |
300 KB | │DOWNLOAD |
Ordering details
| Ordering details | PMF-LED Flex direct mounting | PMF-LED Flex bracket mounting | |
| Lens colour | Rated voltage | 95-253 V AC / 100-350 V DC | |
| Amber | Article number | 21151644006 | 21151644007 |
| Red | Article number | 21151645006 | 21151645007 |
Choose a lens in one of the following colours: clear, amber, red, green, blue
Article numbers for products with further lens colours and voltages on request
 |
