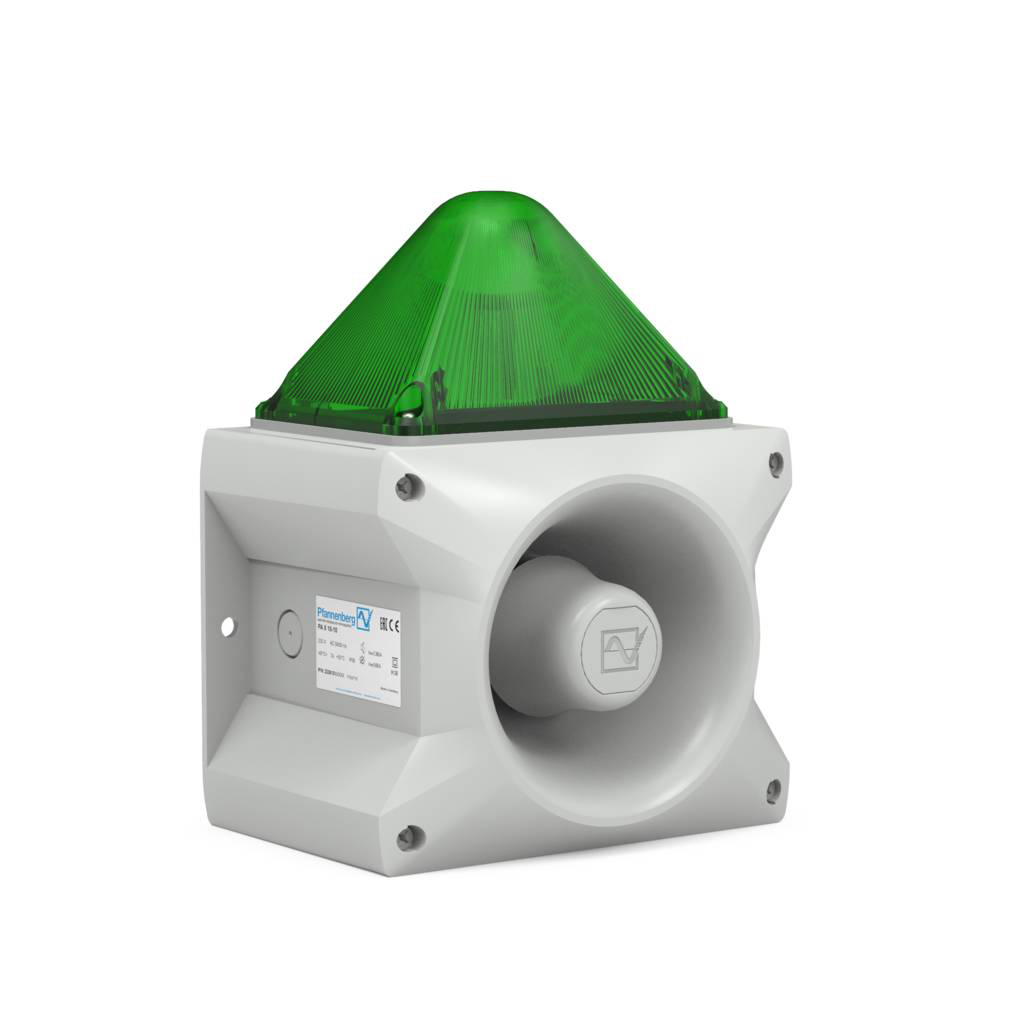

PA X 10-10 / PA X 10-15

PATROL flashing sounders max. 117 dB(A) / 10/15 J

PATROL – the new generation of sounder/flashing light combinations. Three dimensional innovation.

Safe: an incorrect installation is virtually impossible
Easy: significantly shorter assembly and installation times
Economical: extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
Pre-wired sounder and light ex works
Corresponding light intensity available for every sound pressure level

Protection system	Impact-proof housing	NEMA 4/4X	Operating temperature	Acoustic penetration	External tone selection
UL conformity	Warranty 10 years	GL conformity	MED option	EAC conformity

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

PFANNENBERG 3D-COVERAGE

Size of acoustical coverage in meter (A x B x C)

80 dB (A)	85 dB (A)	90 dB (A)
52,8 x 73,3 x 52,8	29,7 x 41,2 x 29,7	16,7 x 23,2 x 16,7

Coverage area with DIN tone and required sound levels.

PA X-10-10 - Size of visual coverage in meter (A x B x C)

	INDICATE	WARNING	ALERT
Red	39,2 x 35,6 x 69,3	17,4 x 15,8 x 30,8	8,7 x 7,9 x 15,4
Yellow	62,6 x 56,7 x 110,3	27,8 x 25,2 x 49	13,9 x 12,6 x 24,5
Green	48,6 x 44,6 x 86	21,6 x 19,8 x 38,2	10,8 x 9,9 x 19,1
Amber	48,6 x 44,6 x 86	21,6 x 19,8 x 38,2	10,8 x 9,9 x 19,1
Clear	68 x 61,7 x 119,7	30,2 x 27,4 x 53,2	15,1 x 13,7 x 26,6

PA X-10-15 - Size of visual coverage in meter (A x B x C)

	INDICATE	WARNING	ALERT
Red	48,6 x 43,2 x 83,7	21,6 x 19,2 x 37,2	10,8 x 9,6 x 18,6
Yellow	78,3 x 58,1 x 133,2	34,8 x 25,8 x 59,2	17,4 x 12,9 x 29,6
Amber	60,8 x 53,6 x 104	27 x 23,8 x 46,2	13,5 x 11,9 x 23,1
Blue	39,6 x 34,7 x 67,1	17,6 x 15,4 x 29,8	8,8 x 7,7 x 14,9
Clear	84,6 x 74,7 x 144,5	37,6 x 33,2 x 64,2	18,8 x 16,6 x 32,1

Technical data

Electrical data	PA X 10-10 / 10 Joules
Rated voltage	230 V AC	115 V AC	24 V DC
Rated frequency	50/60 Hz	50/60 Hz
Operating range	187–255 V	90–135 V	18–30 V
Nominal current consumption	160–215 mA	260–345 mA	665–935 mA

Electrical data	PA X 10-15 / 15 Joules
Rated voltage	230 V AC	115 V AC	24 V DC
Rated frequency	50/60 Hz	50/60 Hz
Operating range	187–255 V	90–135 V	18–30 V
Nominal current consumption	210–265 mA	360–445 mA	765–1035 mA

Further technical details can be found in the download section on this page

Downloads

Description	Language	Type	Size	Download
Declaration of Conformity CE	English, German		41 KB	│DOWNLOAD
Declaration of Conformity UKCA	English		29 KB	│DOWNLOAD
Operating manual	English, German, French, Russian, Italian		3.8 MB	│DOWNLOAD
Quick Guide PA(X)10/ PA(X)20	English, German, French, Russian, Italian		1.3 MB	│DOWNLOAD
Product Sheet	English		4.3 MB	│DOWNLOAD
3D-Model (IGS)	English		730 KB	│DOWNLOAD
3D-Model (SAT)	English		920 KB	│DOWNLOAD
3D-Model (STEP)	English		640 KB	│DOWNLOAD
EC Declaration of Conformity (MED)	English		31 KB	│DOWNLOAD
UK Declaration of Conformity (MER)	English		30 KB	│DOWNLOAD
MED Certificate	English		190 KB	│DOWNLOAD
DNV/GL Type Approval	English		190 KB	│DOWNLOAD
DNV/GL UK (MER) Approval	English		190 KB	│DOWNLOAD
UL Certificate	English		200 KB	│DOWNLOAD
EAC Certificate	Russian		300 KB	│DOWNLOAD

Ordering details

Ordering details	housing red	PA X 10-10
Version	Rated voltage	230 V AC	115 V AC	24 V DC
Yellow lens	Article number	23361103000	23361153000	23361803000
Amber lens	Article number	23361104000	23361154000	23361804000
Red lens	Article number	23361105000	23361155000	23361805000

Ordering details	housing grey	PA X 10-10
Version	Rated voltage	230 V AC	115 V AC	24 V DC
Yellow lens	Article number	23361103055	23361153055	23361803055
Amber lens	Article number	23361104055	23361154055	23361804055
Red lens	Article number	23361105055	23361155055	23361805055

Article numbers for products with further lens colours and voltages on request

Options / accessories

│SURFACE GASKET FOR
PA 10/20 / PA X-10/20

│LOCKING ELEMENTS
FOR PATROL / PYRA®

│TAMPER-PROOF SEALING
FOR PATROL / PYRA®

│PANEL MOUNT INSTALLATION
KIT FOR PA 10/20

Video PATROL

Audio Samples

Description	Type	Size	Download
Sawtooth DIN tone 33404-3 Germany (emergency signal) PFEER PTAP		800 KB	│DOWNLOAD
Slow whoop Fire alarm UK BS5839-1		890 KB	│DOWNLOAD
Interrupted tone Fast		910 KB	│DOWNLOAD
Interrupted tone		930 KB	│DOWNLOAD
Slow whoop Evacuation alarm Netherlands NEN 2575		890 KB	│DOWNLOAD
Slow whoop Australian AS2220 (evacuation alarm)		1.1 MB	│DOWNLOAD
Slow whoop NFPA		980 KB	│DOWNLOAD
Pulsating tone Australian alert AS1670, ISO 8201		710 KB	│DOWNLOAD
Siren		1.4 MB	│DOWNLOAD
Siren		1.3 MB	│DOWNLOAD
Siren		1.3 MB	│DOWNLOAD
Siren Industrial alarm Germany		5.3 MB	│DOWNLOAD
Sweeping		980 KB	│DOWNLOAD
Sweeping Fast		1.0 MB	│DOWNLOAD
Sweeping		900 KB	│DOWNLOAD
Sweeping France NFC 48-265		1.1 MB	│DOWNLOAD
Sweeping (medium) UK BS 5839-1		980 KB	│DOWNLOAD
Sweeping (fast)		940 KB	│DOWNLOAD
Sweeping (fast) UK BS 5839-1		1.0 MB	│DOWNLOAD
Sweeping		1.1 MB	│DOWNLOAD
Sweeping		800 KB	│DOWNLOAD
Sweeping IMO 3d, Germany KTA3901 (evacuation Alarm)		890 KB	│DOWNLOAD
Sweeping		1.1 MB	│DOWNLOAD
Sweeping Finland (general alarm)		3.1 MB	│DOWNLOAD
Continous tone		880 KB	│DOWNLOAD
Continous tone		880 KB	│DOWNLOAD
Continous tone Finland (all-clear signal)		850 KB	│DOWNLOAD
Continous tone PFEER gas alarm		1.0 MB	│DOWNLOAD
Continous tone		1.0 MB	│DOWNLOAD
Continous tone UK BS5839-1		1.0 MB	│DOWNLOAD
Continous tone		1.0 MB	│DOWNLOAD
Continous tone		990 KB	│DOWNLOAD
Continous tone		990 KB	│DOWNLOAD
Continous tone		980 KB	│DOWNLOAD
Continous tone Sweden SS031711 (all-clear signal)		980 KB	│DOWNLOAD
Continous tone		980 KB	│DOWNLOAD
Continuous tone Germany KTS3901 (all-clear signal)		890 KB	│DOWNLOAD
Continuous tone		880 KB	│DOWNLOAD
Continuous tone		880 KB	│DOWNLOAD
Continuous tone		950 KB	│DOWNLOAD
Interrupted tone		890 KB	│DOWNLOAD
Interrupted tone PFEER (general alarm) UK BS5839-1 (back-up alarm)		940 KB	│DOWNLOA D
Interrupted tone PFEER (general alarm)		860 KB	│DOWNLOAD
Interrupted tone		880 KB	│DOWNLOAD
Interrupted tone		870 KB	│DOWNLOAD
Interrupted tone		930 KB	│DOWNLOAD
Interrupted tone		890 KB	│DOWNLOAD
Interrupted tone Fast, horn		1.1 MB	│DOWNLOAD
Interrupted tone		880 KB	│DOWNLOAD
Interrupted tone Sweden SS031711 (emergency signal)		890 KB	│DOWNLOAD
Interrupted tone Industrial alarm Germany		910 KB	│DOWNLOAD
Interrupted tone Sweden SS031711 (important message (pre-mess)		2.3 MB	│DOWNLOAD
Interrupted tone Sweden SS031711 (local warning)		1.1 MB	│DOWNLOAD
Interrupted tone Sweden SS031711 (air raid warning)		940 KB	│DOWNLOAD
Interrupted tone Sweden SS031711 (emergency signal)		900 KB	│DOWNLOAD
Interrupted tone Germany KTA3901 (evacuation alarm)		950 KB	│DOWNLOAD
Interrupted tone Australia AS2220, AS1610, AS1670		870 KB	│DOWNLOAD
Interrupted tone (fast variable) bell		970 KB	│DOWNLOAD
Interrupted tone ISO 8201 (emergency evacuation signal), USA (evacuation alarm)		960 KB	│DOWNLOAD
Interrupted tone ISO 8201 (emergency evacuation signal)		990 KB	│DOWNLOAD
Interrupted tone ISO 8201 (emergency evacuation signal) sweeping		990 KB	│DOWNLOAD
Interrupted tone IMO (telephone call)		1.0 MB	│DOWNLOAD
Interrupted tone IMO (leave ship)		1.0 MB	│DOWNLOAD
Interrupted tone IMO SOLAS III/50 + SOLAS III/6.4 (general alarm)		7.9 MB	│DOWNLOAD
Alternating tone		890 KB	│DOWNLOAD
Alternating tone		930 KB	│DOWNLOAD
Alternating tone Singapore		890 KB	│DOWNLOAD
Alternating tone		890 KB	│DOWNLOAD
Alternating tone		930 KB	│DOWNLOAD
Alternating tone UK BS58391-1 (fire alarm)		980 KB	│DOWNLOAD
Alternating tone UK BS5839-1 (fire alarm, railway crossing)		1.1 MB	│DOWNLOAD
Alternating tone UK BS5839-1 (fire alarm, increased urgency - railway crossing)		930 KB	│DOWNLOAD
Alternating tone		980 KB	│DOWNLOAD
Alternating tone Industrial alarm Germany		950 KB	│DOWNLOAD
Alternating tone		890 KB	│DOWNLOAD
Alternating tone France NFS 32-001 (fire alarm)		1.0 MB	│DOWNLOAD
Alternating tone Sweden SS031711		890 KB	│DOWNLOAD
Alternating tone Sweden SS031711		890 KB	│DOWNLOAD
Alternating tone (two tone chime)		890 KB	│DOWNLOAD
