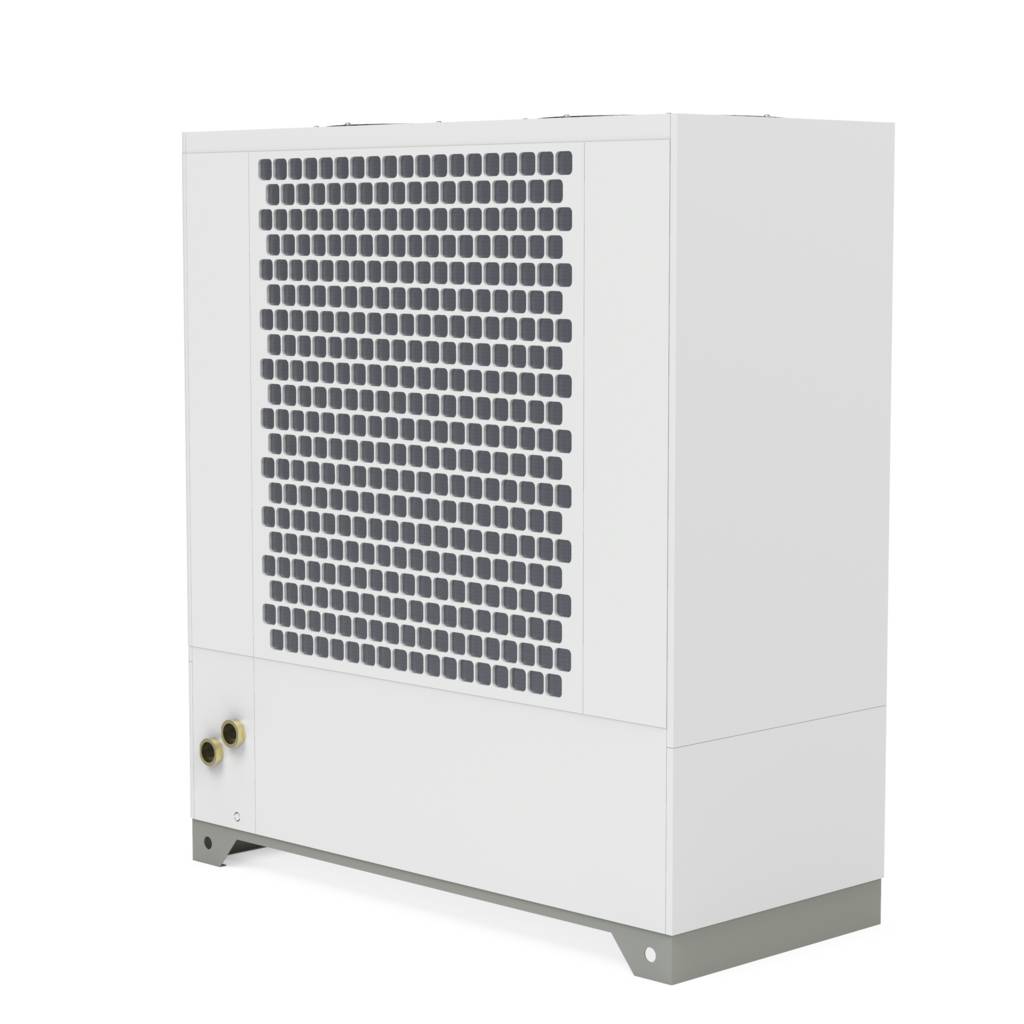

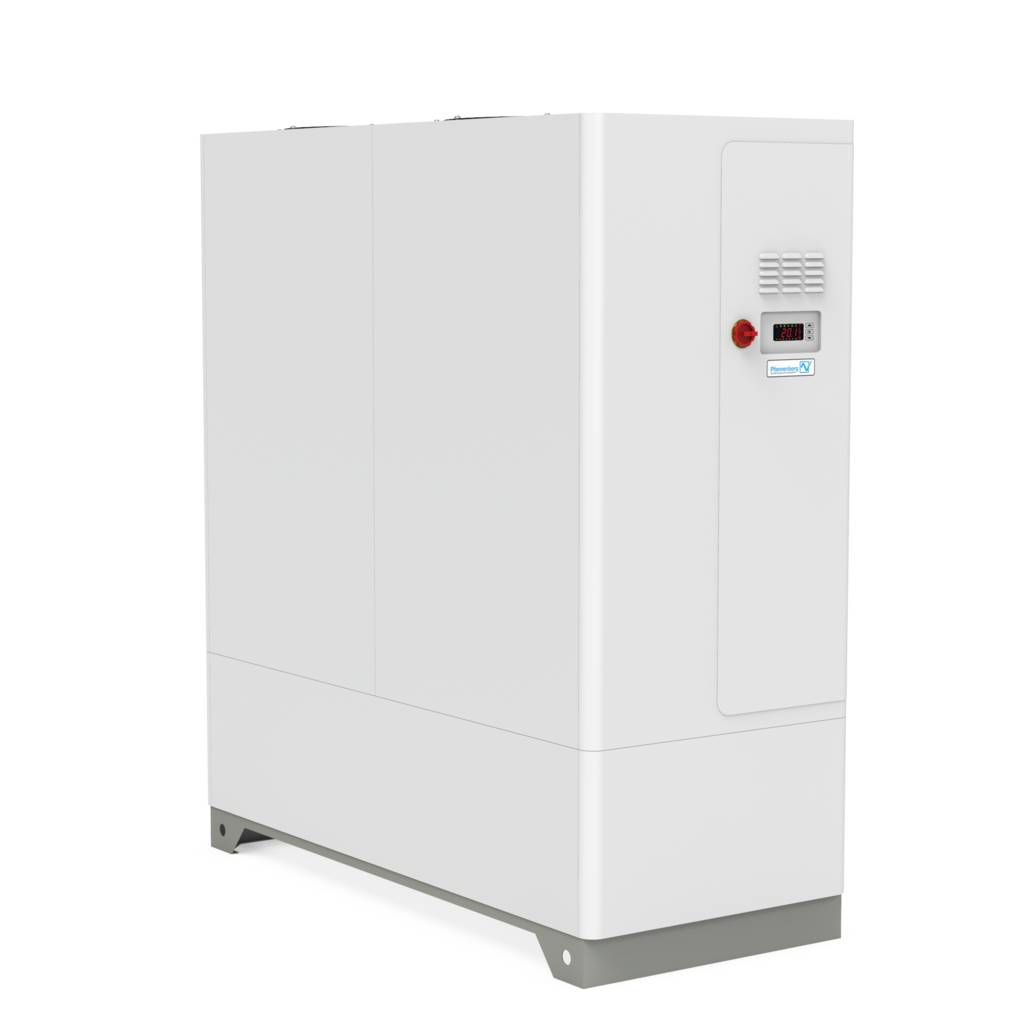

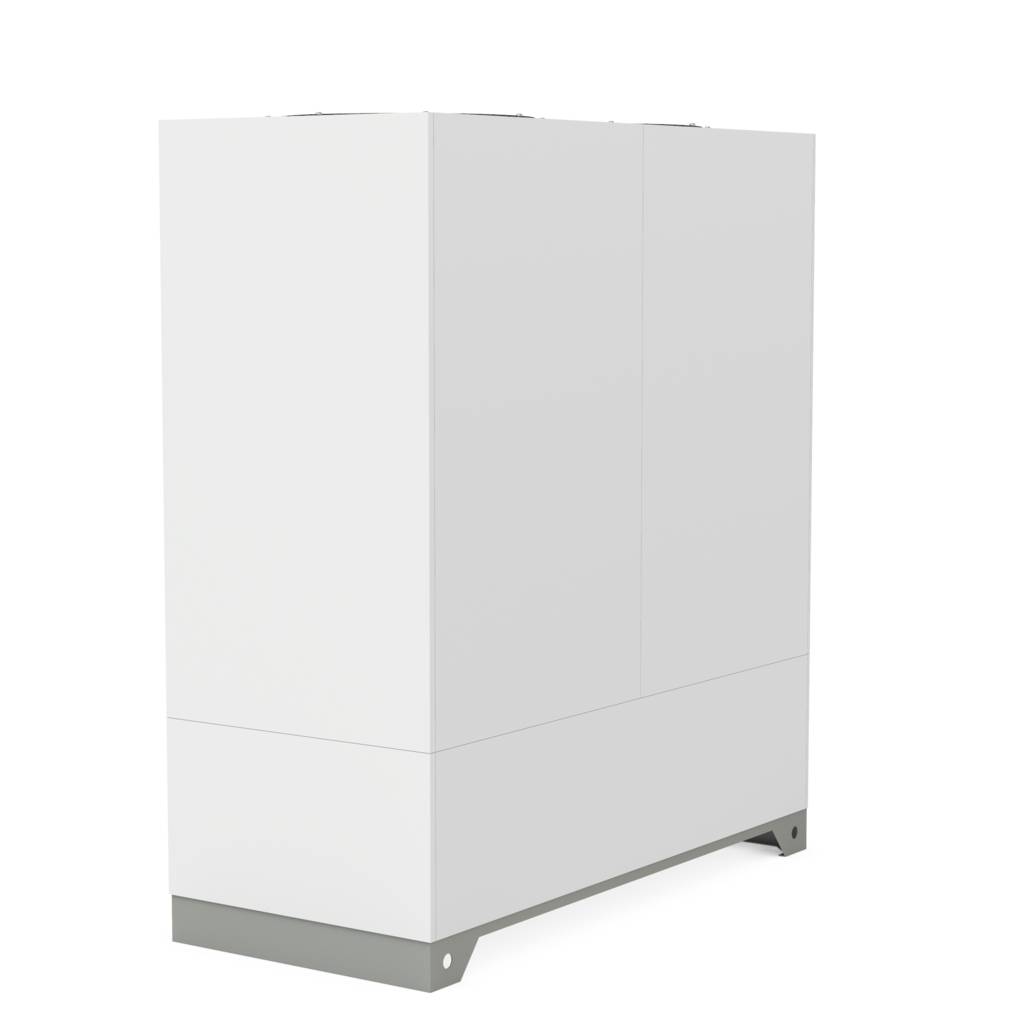

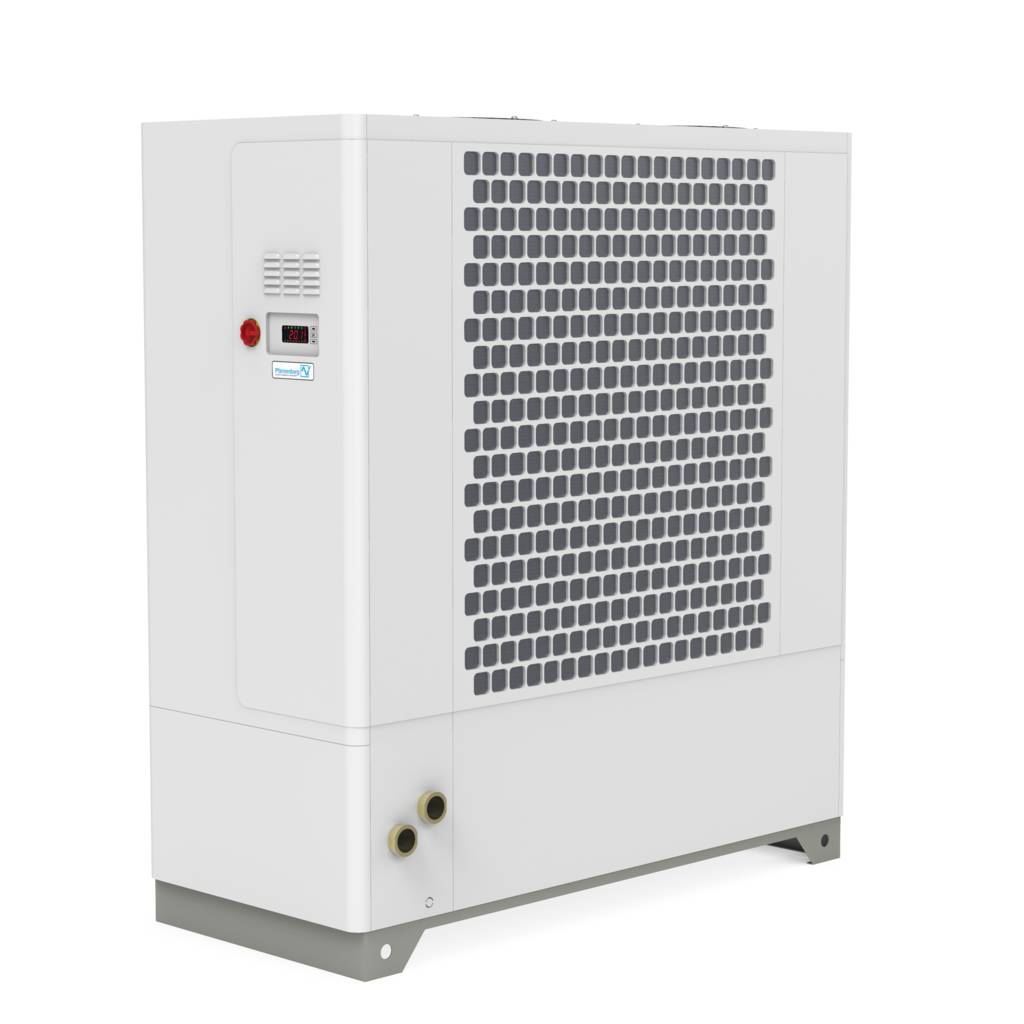

EB XT 700-800-900-1000 WT
| |
Chillers 69–92 kW Pfannenberg introduced a new product series to extend our portfolio with a new extreme performance range up to 150 kW in cooling capacity. The EB eXTreme consists of 9 units in 3 different housing sizes following our high-level standards in efficiency, compact design and innovation in chiller technology |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical data
| Data | EB XT 700 WT | EB XT 800 WT | EB XT 900 WT | EB XT 1000 WT | |
| Rated voltage | ±1 % | 50 Hz AC | |||
| ±10 % | 400 V 3~ | ||||
| Cooling capacity (with pump) | W15/A32 | 69 kW | 76 kW | 86 kW | 92 kW |
| Flow rate (pump) | 200 l/min | 233 l/min | 267 l/min | 300 l/min | |
| Pressure (head) (pump) | 3 bar | ||||
| Ambient temperature | +5 … +50 °C | ||||
| Medium | water, water/glycol | ||||
| Medium temperature (outlet) | +8 … +30 °C | ||||
| Connections (medium) | IG | 2" BSP | |||
| Dimensions (H x W x D) | 2030 x 830 x 1840 mm | ||||
Further technical details and dimensions can be found in the download section on this page under product sheet
Downloads
| Description | Language | Type | Size | Download |
| Product sheet | English |  |
920 KB | │DOWNLOAD |
| Drawing | English | |
190 KB | │DOWNLOAD |
| Placement | English, German | |
87 KB | │DOWNLOAD |
| Base plate | English | |
97 KB | │DOWNLOAD |
| Options | English | |
880 KB | │DOWNLOAD |
| Hydraulic diagram 700 WT | English | |
190 KB | │DOWNLOAD |
| Hydraulic diagram 800 WT | English | |
200 KB | │DOWNLOAD |
| Hydraulic diagram 900 WT | English | |
200 KB | │DOWNLOAD |
| Hydraulic diagram 1000 WT | English | |
200 KB | │DOWNLOAD |
| Performance curve 700 WT | English | |
63 KB | │DOWNLOAD |
| Performance curve 800 WT | English | |
63 KB | │DOWNLOAD |
| Performance curve 900 WT | English | |
65 KB | │DOWNLOAD |
| Performance curve 1000 WT | English | |
63 KB | │DOWNLOAD |
| Declaration of conformity | Italian, English | |
410 KB | │DOWNLOAD |
| EAC certificate | Russian | |
960 KB | │DOWNLOAD |
Ordering details
| Ordering details | EB XT 700 WT | EB XT 800 WT | EB XT 900 WT | EB XT 1000 WT |
| Article number | 42147005001 | 42148005001 | 42149005001 | 42151005001 |
Article number for other types on request
 |
